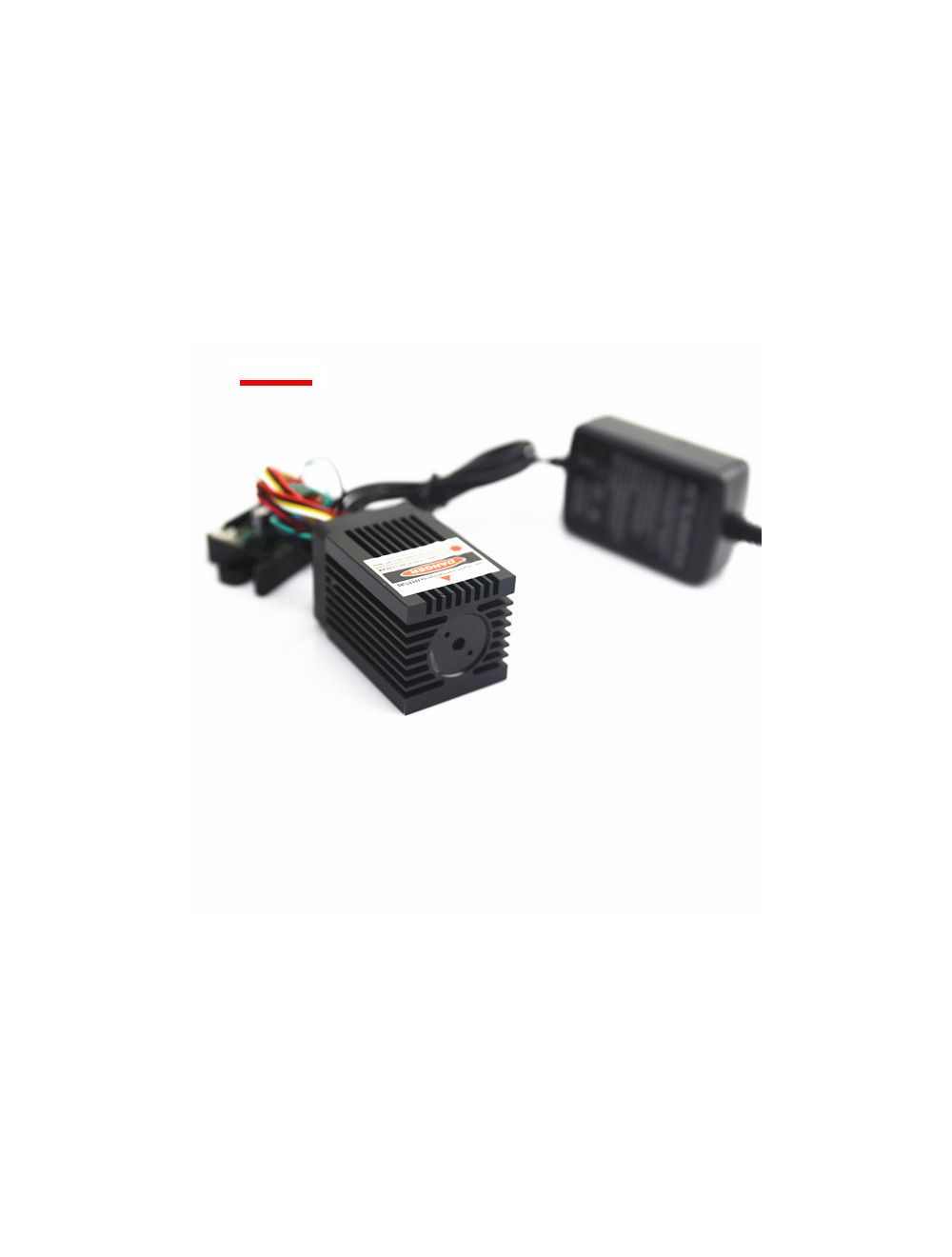

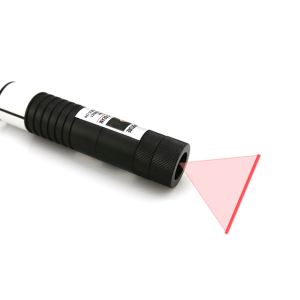

High Power 650nm 150mW-500mW Red Laser Line Generator

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $299.98

Special Price $279.98

  • Buy 3 for $277.98 each and save 1%
  • Buy 5 for $275.98 each and save 2%
  • Buy 10 for $272.98 each and save 3%

Quick Overview

Whether glass coated lens or separate crystal lens it is equipped, high power 650nm 150mW to 500mW red laser line generator easily gets high intensity and high transmittance red laser light emission in continuous work. Being made with import 650nm red laser diode, separate metal heat sink cooling system and APC, ACC driving circuit board, this compact structure designed high power 650nm red laser module ensures improving laser beam stability, and providing the best quality red reference line generation for multiple occasions, including lab, institutes, prominent colleges and universities etc.

* Required Fields

Details

Beginning with high power within 150mW to 500mW and application of quite mature 650nm red laser diode tech, high power 650nm red laser line generator gets the most stable and the most intense red laser light emission in use. Designed with quite durable aircraft used aluminum alloy housing and external DC input power supply, high power 635nm red laser module obtains superior thermal conductivity, and maintains high level of stability red laser line alignment for various industrial and high tech applied fields effectively.

● DC input power supply ensures continuous red line alignment easily.
Supported by 9V 1000mAh electric current supply, high power 650nm red laser line generator keeps clear red line projection in distance continuously. Extending electric wires for 650nm red laser module and DC power supply are featured by high temperate and corrosion resistance, ensuring highly stable performance under strong interference or static as well.

● Wide power range makes sure of highly clear line alignment in distance.
Within 150mW to 500mW, import laser diode tech applied high power 650nm red laser module generates high intensity and high power red laser light in distance. Separate metal heat sink cooling system makes perfect cooperation with metal housing tube, ensuring superior thermal conductivity and highly stable red line alignment in long term use.

● Freely selected optic lens degree gets the most accurate measurement.
Available with 10°to 110°optic lens degree from separate crystal lens or glass coated lens, high power 650nm red laser line generator gets the finest red line projection in use. Correct selected output power and optic lens ensures no mistake measurement efficiently.

● APC, ACC driving circuit maintains constant line projection in long term use.
High power 650nm red laser line module gets APC, ACC driving circuit design, preventing super rapid temperature increasing and serious electric current impacting, and making sure of up to 80% laser beam stability within 8 to 10 hours continuous line alignment per day.



Technical parameters:

Item High Power 650nm Red Laser Line Generator
Wavelength (nm) 650nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture (mm) <2.5mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Notes:

Industrial stabilized high power 650nm red laser line generator only allows operation by trained users. People should adjust it to correct position and operate under special aligning devices.

Warning! Red laser module generates extremely powerful and intense red laser radiation and reflection. Any exposure to powerful light and thermal energy can cause hazard to human eyes and skins. Never look directly into laser beam aperture and do remember to wear 650nm wavelength preventing laser safety goggles constantly.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 650nm Red Laser Line Generator
2. DC input power Supply

Attention: For high powered or OEM 650nm red laser line generators, please contact us free at support@berlinlasers.com.
