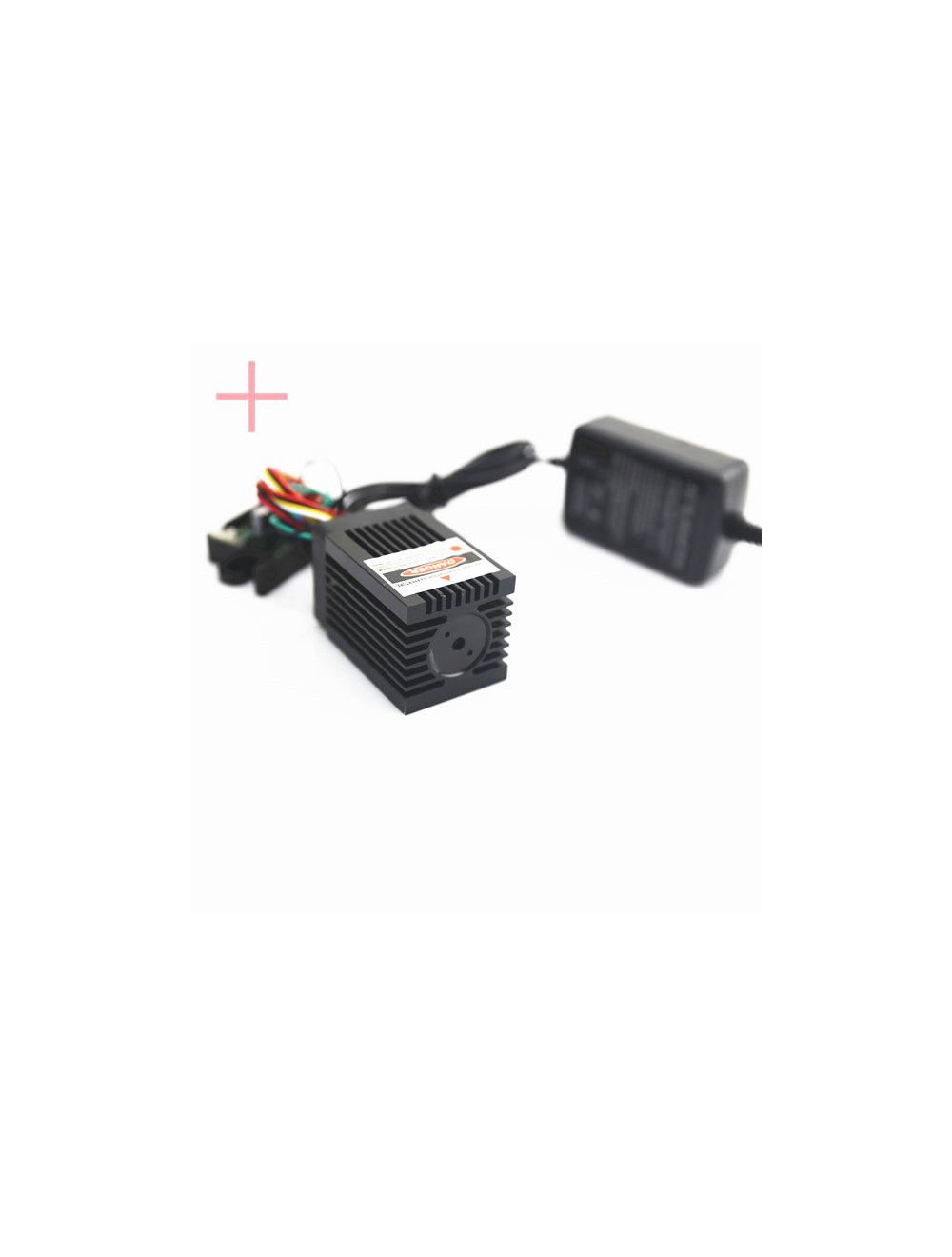

High Power 980nm 600mW-1000mW Infrared Cross Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $399.98

Special Price $339.99

  • Buy 3 for $337.99 each and save 1%
  • Buy 5 for $334.99 each and save 2%
  • Buy 10 for $330.99 each and save 3%

Quick Overview

Being designed with import 980nm infrared laser diode, separate heat sink cooling system and APC, ACC driving circuit board, high power 980nm 600mW to 1000mW infrared cross line laser module generates high intensity IR laser light emission and the clearest infrared vertical and horizontal IR lines with accurate 90 degrees. This glass coated lens high power IR infrared laser alignment keeps high linear quality and high straightness infrared cross line source projection under night vision illumination fields, including prominent lab, institutes, prominent university and colleges etc.

* Required Fields

Details

Under operation with night vision illuminated device, such as CCD camera, black and white camera and infrared laser camera, high power 980nm 600mW to 1000mW infrared cross line laser module easily obtains super clear and accurate infrared two perpendicular lines generation in distance efficiently. Being made with high attention to industrial stabilization, high power 980nm IR infrared laser device provides the most stable IR cross line alignment for various application fields, including IR cross line alignment for scientific research, spectrum analysis, laser medical therapy, night hunting and infrared laser sighting etc.

◆ Selectable high power ensures long distance IR cross line alignment easily.
Import 980nm infrared laser diode within 600mW to 1000mW ensures improving laser beam stability at least 40% and high intensity IR laser light source emission in distance. High power 980nm infrared laser module keeps high laser photoelectric ability and highly clear IR cross line alignment under night vision device efficiently.

◆ Qualified glass coated lens ensure different cross line dimension in use.
High power 980nm infrared cross line laser module with qualified glass coated lens projects high linear quality and high straightness IR two perpendicular lines with accurate 90 degrees. Selected from 10, 15 and 110 degree optic lens degree, and up to 24 hours aging preventing test, IR cross line alignment keeps high stability and no decay light emission.

◆ APC, ACC driving circuit board makes sure of constant cross line generation stably.
Temperature increases seriously after high power 980nm infrared laser module begins to work. APC, ACC driving circuit board keeps efficient preventing of electric current impacting, ensuring up to 80% laser beam stability and highly stable infrared cross line alignment and excellent laser light cycling use.

◆ DC input power supply supports continuous cross measurement perfectly.
AC/DC adapter supported high power 980nm infrared cross line laser module keeps continuous IR cross alignment in long term use. Extending electric wires are high temperature and corrosion resistance, ensuring highly stable IR cross line generation under strong interference or strong static etc.

Technical parameters:

Item High Power Infrared Cross Line Laser Module
Wavelength(nm) 980nm
Output power(mW) 600mW, 700mW, 800mW, 900mW, 1000mW
Available Fan Angle (degree) 10°, 15°, 110°
Beam diameter at aperture(mm) 3mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? No
Operating voltage(v) DC=9.0V
Operating current(mA) I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia26mm×Length150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

High power 980nm 600mW to 1000mW infrared cross line laser module keeps the most intense infrared laser radiation and radiation from laser beam aperture. It only allows operation by skilled users and professionals under IR alignment equipment with proper adjustment.

Warning! Any eye exposure to powerful infrared laser light and thermal energy can cause serious hazard and damage to human eyes and skins. Avoid staring at infrared laser beam aperture. Do remember to wear 980nm wavelength preventing laser safety goggles & glasses.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 980nm Infrared Cross Line Laser Module
2. DC input power Supply

Attention: For OEM high power 980nm infrared cross line laser modules, please contact us free at support@berlinlasers.com.
