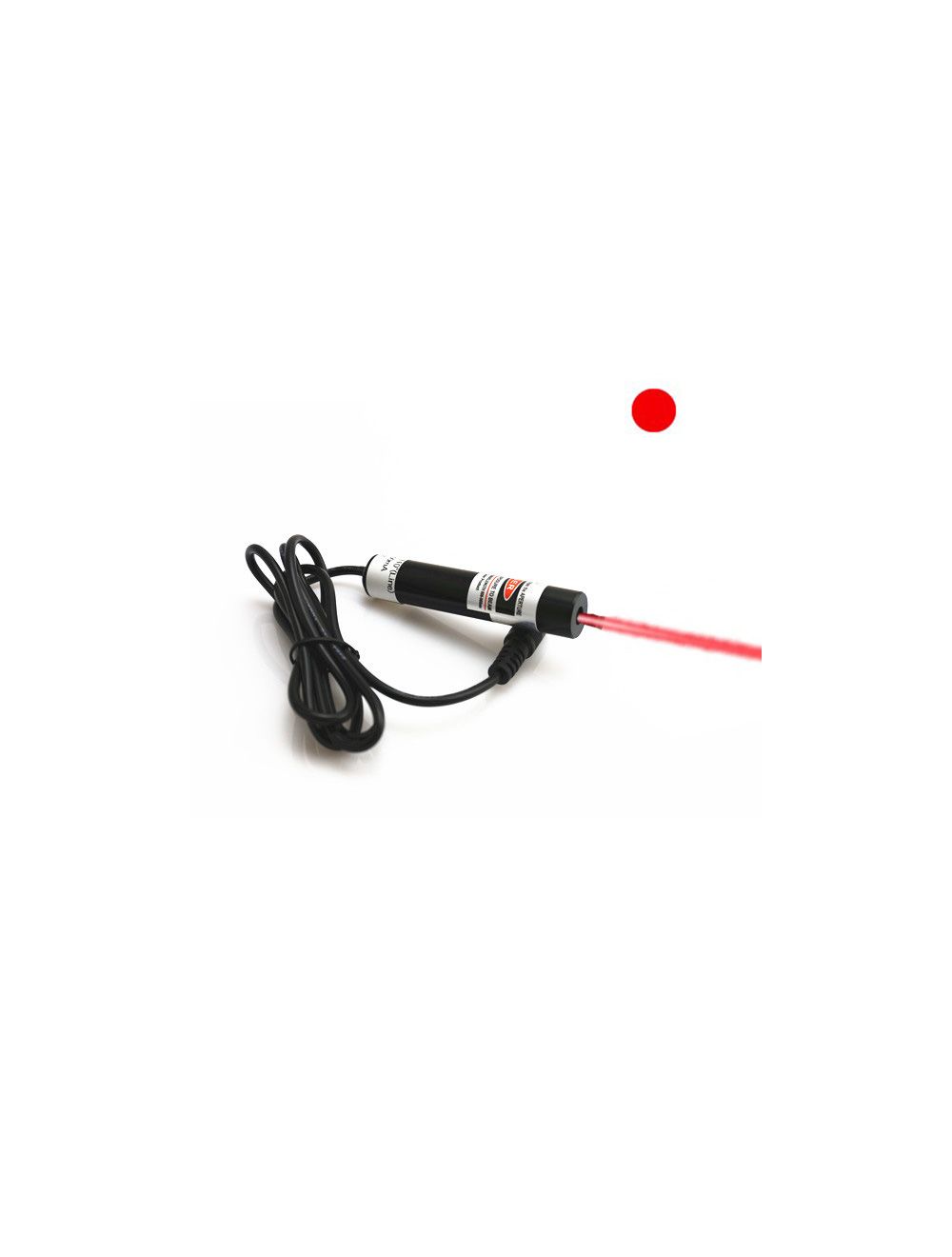

635nm Red Dot Laser Module

Employed by high purity red laser light emitted 635nm red laser diode, glass coated lens and perfect thermal emitting, 635nm red dot laser module is being used as the most genuine industrial stabilized laser dot alignment tool. Proper installation and adjustment of both laser beam focus and dot targeting direction ensures the most accurate red reference dot alignment for various industrial dot aligning use and high tech works etc.
was $91.99 Special Price $79.99
Availability: In stock
  • Buy 3 for $77.99 each and save 3%
  • Buy 5 for $75.99 each and save 5%
  • Buy 10 for $72.99 each and save 9%

Wide range output power 635nm red dot laser module gets featured advantages of high purity red light emission, low laser beam divergence and special laser beam mode of TEM00, obtaining the most compact size and good circle red reference dot in use. This red laser dot alignment tool provides the most accurate and the brightest red dot aligning solution for any industrial laser dot use, drilling system, stone, garment, wood and food processing, high tech and lab experiment works etc.

DC input power supply supports continuous red laser dot projection constantly. Supported by DC input power supply, accepting 100V to 240V operating voltage, 635nm red dot laser module enables easy and convenient dot alignment for majority occasions. Special electric wire design with high temperature and strong corrosion resistance guarantees the most reliable red dot projection for harsh occasions and free installation.

Adjustable focus red laser module gets concentrated red light and accurate measurement. The front beam aperture with adjustable cylindrical lens allows free screw, realizing easy beam focus adjustment rang within close distance until infinity. High concentration red laser light converts into the most compact size red reference dot projection accurately and conveniently.

APC, ACC driving circuit board provides high stability dot alignment. Under serious increasing temperature and serious electric current impacting of 635n red dot laser module, APC, ACC driving circuit makes intelligent feedback control of constant output power and electric current supply. Within daily operating of 8 to 10 hours, red dot laser maintains excellent laser light cycling use and long serving lifetime up to 8000 hours.

Technical Data:

Item Red Dot Laser Module
Wavelength (nm) 635nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW
Laser Class IIIa, IIIb
Beam thickness at aperture (mm) <2mm
Beam divergence (mrad) <2mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-30mW:DC=3.0V; 50mW-100mW:DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-30mW: D16mm×L71mm;50mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Red dot laser module
2. DC input power Supply optional

Attention: For high powered or OEM 635nm red dot laser modules, please contact us free at support@berlinlasers.com.
