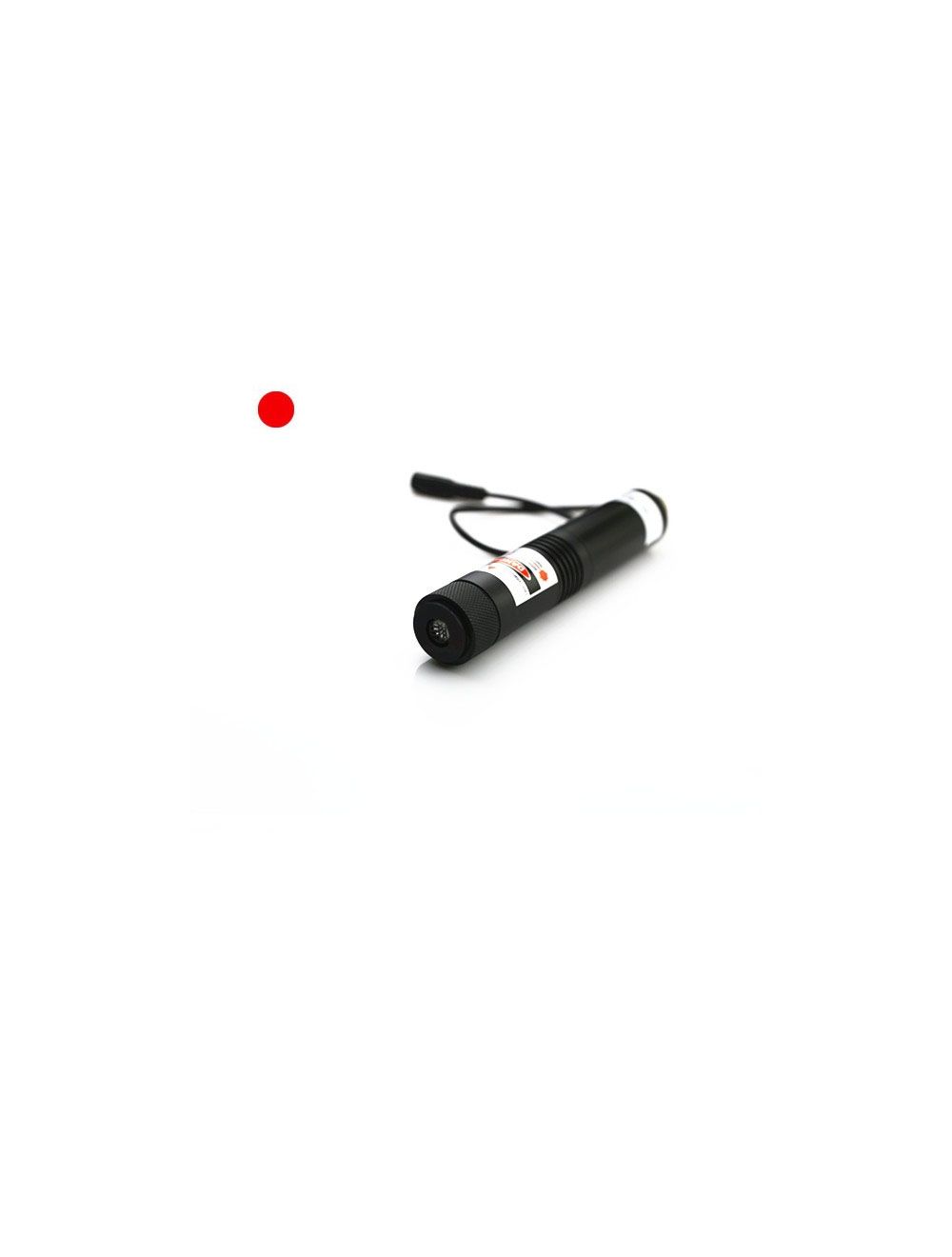

High Power 635nm Red Dot Laser Module 150mW-500mW

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $299.99

Special Price $278.99

  • Buy 2 for $275.99 each and save 2%
  • Buy 5 for $272.99 each and save 3%
  • Buy 10 for $268.99 each and save 4%

Quick Overview

Industrial stabilized high power 635nm red dot laser module configures import 635nm red laser diode, qualified glass coated lens and APC, ACC diving circuit board into durable metal housing tube, ensuring increasing laser beam stability and the most intense red laser source emission from beam aperture. Special separate cooling system and external electric power source enables superior nice thermal emitting and the most stable red laser dot alignment for multiple application fields, including colleges, university, lab and prominent institutes etc.

* Required Fields

Details

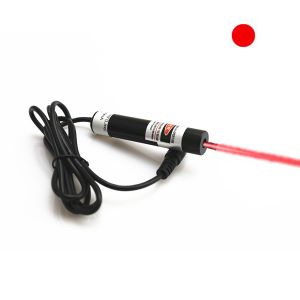

High power 635nm red dot laser module gathers the purest and the brightest red laser light from 635nm red laser diode. The import laser diode tech and easy screw of adjustable cylindrical lens ensures the most accurate red reference dot projection accept sunlight and up to 80% beam stability improvement in continuous dot alignment use. Compact and durable structure designed red laser ensures free installation and convenient red reference dot indication for industrial dot positioning and measuring with an adjustable focus beam at desired work distance.

◆ Industrial red dot laser for continuous dot alignment stably.

Separate metal heat sink cooling system ensures the largest space leaving inner tube cooling down. Integrated import cooper made 635nm red laser diode core part into aircraft used aluminum alloy housing tube, high power red dot laser module obtains the best thermal conductivity and the most reliable red reference dot projection, and perfect performance of calibration and mechanical moving calibration as well.

◆ Easy DC power supply enables continuous dot projection.

AC/DC adapter allows wide range electric current input within 100V to 240V, converting into 9V 1000mW operating voltage, and supporting high power 635nm red laser with continuous laser dot projection. Featured by high temperature and strong corrosion, within freely installed distance of 3 meters, red laser dot alignment maintains convenient use and long serving lifetime under operation within 8 to 10 hours per day.

◆ APC, ACC driving circuit board enables constant power supply.

Intelligent feedback system protects high power 635nm red dot laser module from overheating and over electric current impacting, ensures stable red reference dot projection under increasing tube temperature.

◆ Qualified optic lens ensures the clearest laser dot alignment continuously.

High quality glass coated lens with special front glass window of laser beam aperture provides high beam transmittance and the best quality red reference dot projection, also keeping stable performance under dust or moisture occasion as well. Correct power made red laser module provides the most accurate dot alignment for drilling system, textile industry, automotive industry, medical therapy, stone, wood and metal processing etc.

Technical parameters:

Item High Power 635nm Red Dot Laser Module
Wavelength (nm) 635nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) 2mm×6mm@2M
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:

High power 635nm red dot laser module emits the most powerful red laser radiation and reflection, cause serious thermal energy emission from beam aperture. Any eye exposure to beam aperture in close distance might cause serious damage or hurt to human eyes and skins.

Do remember to operate under professional machine or equipment. Never forget to wear 635nm wavelength protecting laser safety glasses & goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 635nm Red Dot Laser Module
2. DC input power Supply

Attention: For OEM high powered 635nm red dot laser modules, please contact us free at support@berlinlasers.com.
