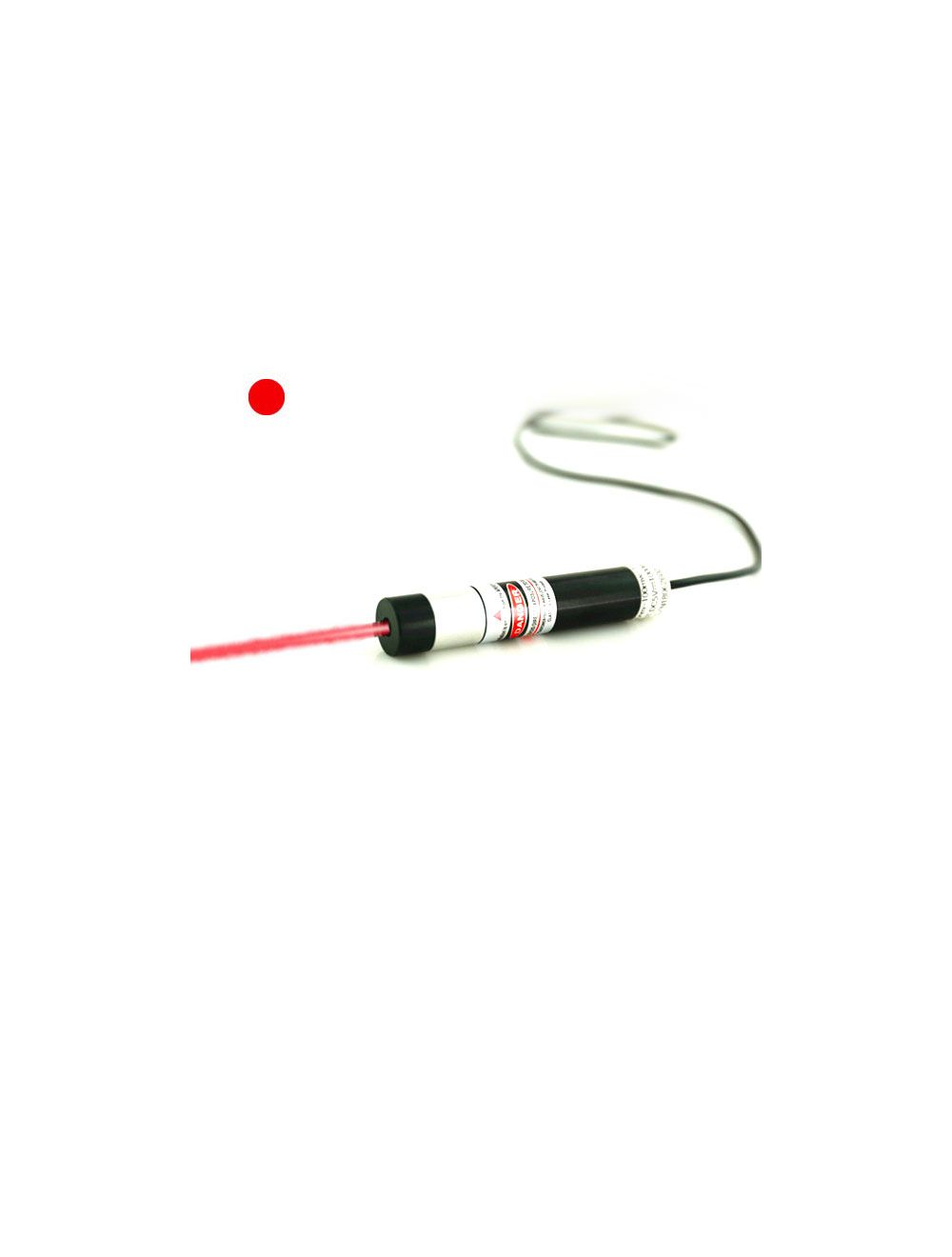

660nm Red Dot Laser Alignment

Direct diode emission 660nm 5mW to 100mW red dot laser alignment employs qualified import 660nm red laser diode, glass coated lens and APC driving circuit board into compact structure metal housing tube. Integrated with durable aircraft used aluminum alloy housing tube and constant power source from DC power supply, 660nm red laser module assures high quality red laser light source projection and highly stable dot indication for various industrial and high tech dot measuring works.

was $79.99 Special Price $65.99
Availability: In stock
  • Buy 3 for $63.99 each and save 3%
  • Buy 5 for $61.99 each and save 6%
  • Buy 10 for $59.99 each and save 9%
660nm Red Dot Laser Alignment is available to buy in increments of 1

Employing the best quality 660nm red laser diode within 5mW to 100mW, owing to mass production and long developing history and good configuration with cooling system, 660nm red dot laser alignment is just being made into the most practically used and industrial stabilized dot measuring device. It gets featured advantages of low price, good laser beam stability and long operating lifetime. This 660nm red laser module provides the best red dot aligning source for both industrial and high tech measuring fields.

Wide range output power enables highly clear dot indication.
660nm red dot laser alignment gets wide range output power of 5mW to 100mW. Configured with inner metal heat sink cooling system inside aircraft used aluminum alloy housing tube with 16mm and 26mm diameter, it assures good thermal conductivity and high stability red dot indication for different work distances and lighting occasions.

Adjustable focus lens assures the most precise red dot alignment.
Very easy screw of laser beam aperture enables immediate red laser light concentration, this 660nm red laser module achieves the most compact size and quick response dot alignment in distance.

APC, ACC driving circuit board maintains up to 85% beam stability.
The genuine red dot laser alignment keeps work with intelligent feedback control of output power and electric current supply, not affecting by increasing temperature and serious electric current impact. Within daily use of 8 to 10 hour, it ensures good laser light cycling use and high beam stability in constant use.

AC/DC adapter assures clear dot alignment constantly.
Accepting wide range electric current of 100V to 240V, 660nm red laser module gets correct use of 5V, 9V 1000mA DC power supply, assures constant red laser beam and red dot emission.

Technical parameters:

Item Red Dot Laser Alignment
Wavelength (nm) 660nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW
Laser Class IIIB
Beam thickness at aperture (mm) 4.2mm×2.5mm
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=5V; 30mW-100mW:DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 10℃~45℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty Period 180 days


Laser marking machine, laser engraving machine, lab experiment, military targeting and scientific research work etc


Any time the selection of 660nm red dot laser alignment gets high output power up to 50mW to 100mW, it projects seriously powerful red laser radiation and thermal energy hurt to eyes. Please avoid any eye exposure to laser beam aperture. Do remember to wear 660nm wavelength preventing laser safety goggles to achieve safe and clear dot measurement freely.

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
