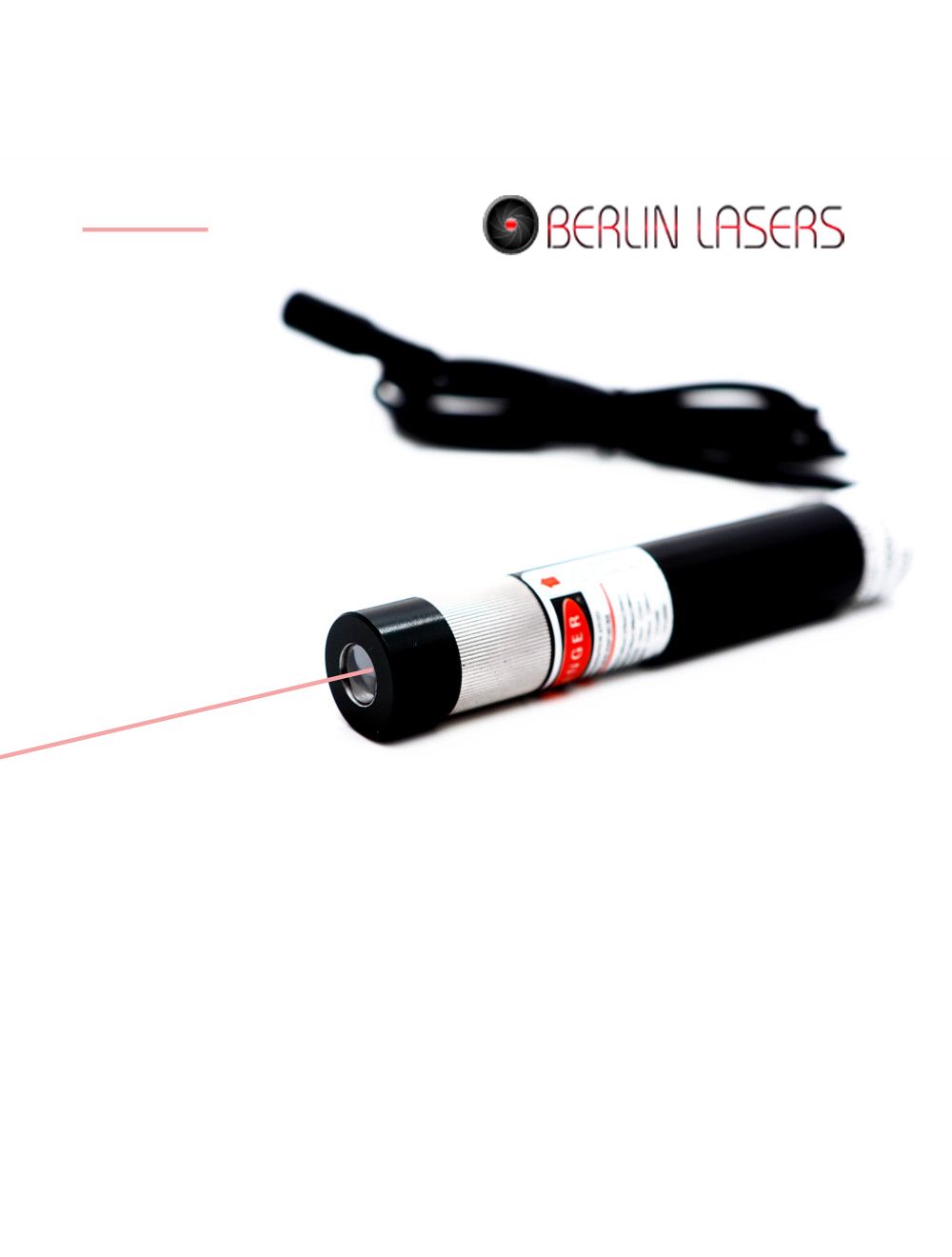

780nm 5mW to 100mW Infrared Line Laser Modules
780nm near infrared line laser module projects invisible infrared laser beam directly from 790nm infrared laser diodes within wide range output power of 5mW to 100mW. Configured with night version device and external electric power source, it makes efficient infrared laser light conversion, and generates highly clear and fine infrared line alignment for all night version precise line measuring fields effectively.
- Buy 3 for $137.99 each and save 1%
- Buy 5 for $134.99 each and save 4%
- Buy 10 for $131.99 each and save 6%
Invisible IR beam emitting 780nm infrared line laser modules enable easy and convenient use as an accessory part. Cooperating with wide fan angles optic lens, thermal emitting system and APC, ACC driving circuit board, ultra compact size tube made laser line generator assures high beam stability, good direction, high fineness infrared line alignment with low production cost.
Key features:
Import 780nm infrared laser diodes within 5mW to 100mW with metal heat sink cooling system assures 40% increasing laser beam stability, clear and no light decay infrared laser line alignment.
5V, 9V 1000mA AC/DC adapter connect 780nm infrared laser with constant infrared laser beam emission, highly stable IR line alignment, no effect of overheating or over current impact.
Qualified glass coated lens or Powell lens within 10 to 110 degree keeps work with high quality and intense Gaussian or Non Gaussian distribution infrared laser light emission, and high linear quality IR line alignment with various line lengths.
Easy screw of adjustable focus optic lens enables freely adjusted IR line fineness, increasing accuracy line alignment at long distance.
APC, ACC driving circuit board maintains constant output power and electric current supply, no tube burning out or damage, up to 8,000 hours operating lifetime.
Technical data:
| Item | Infrared Line Laser Modules |
| Wavelength (nm) | 780nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 780nm infrared line laser module and 1 ea AC/DC adapter
Applications: scientific experiment, laser medical therapy device, military line targeting and positioning, infrared laser illumination, surveillance etc
Note: For operation with invisible beam 780nm infrared lasers, human eyes cannot capture any infrared laser light and potential thermal energy hurt to human eyes and retina. Please remember to wear correct infrared laser safety goggles and avoid eye exposure so as to achieve easy and free IR line alignment.
