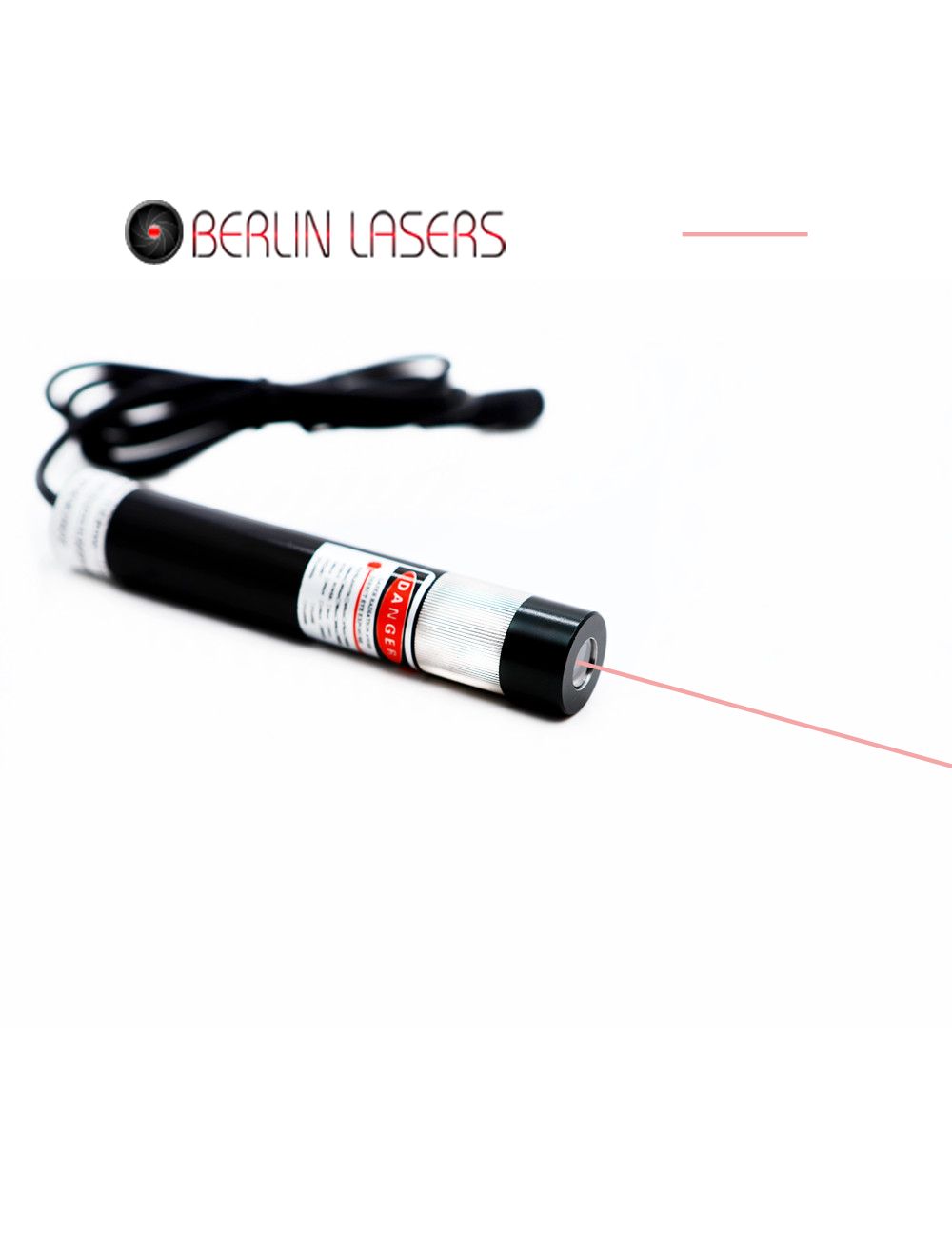

780nm 5mW to 100mW Infrared Laser Line Generators
Direct diode emission 780nm infrared laser line generators employ import 780nm infrared laser diodes, metal heat sink, qualified optic lens inside durable metal housing tube. It gets superior strong industrial stabilization. After easy connects with external electric power source and proper mounting onto night version device, 780nm infrared laser modules makes sure of quick response, good direction and low production cost infrared line alignment constantly.
- Buy 3 for $136.99 each and save 2%
- Buy 5 for $133.99 each and save 4%
- Buy 10 for $130.99 each and save 6%
Anodized aluminum alloy housing made 780nm infrared laser line generators with 16mm and 26mm diameter tube enables easy and convenient installation and operation. Being made with qualified glass coated lens or Powell lens, after up to 24 hours aging preventing test and operation by skilled users, 780nm infrared laser module provides users the best quality infrared laser light and high fineness infrared line projection for all nigh version illumination fields effectively.
Key features:
Direct diode emission 780nm 5mW to 100mW infrared laser module with metal heat sink cooling system achieves increasing laser beam stability, and highly clear infrared line projection within 8 to 10 hours.
5V,9V 1000mA AC/DC adapter supports 780nm infrared laser with constant infrared laser beam and infrared laser line projection, not affecting by increasing temperature and serious electric current impact as well.
Adjustable focus optic lens enables immediate infrared laser light concentration, increasing brightness and accuracy line alignment in distance.
Glass coated lens or Powell lens within 10 to 110 degree projects high quality Gaussian or uniform distribution infrared laser light, and assures high linear quality infrared line alignment for multiple night version measuring works.
APC, ACC driving circuit board makes intelligent feedback control of output power and electric current supply. Infrared laser line alignment gets up to 85% beam stability within 8 to 10 hours use.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Laser Line Generators |
| Wavelength (nm) | 780nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 780nm infrared laser line generator and 1 ea AC/DC adapter
Applications: laser medical therapy device, military precise line alignment, lab experiment, infrared laser illumination, measurement
Note: Human eyes cannot capture any powerful infrared laser radiation and reflection. Infrared laser users should take safe safety measure and wear correct infrared laser safety goggles so as to assure secured and free line alignment constantly.
