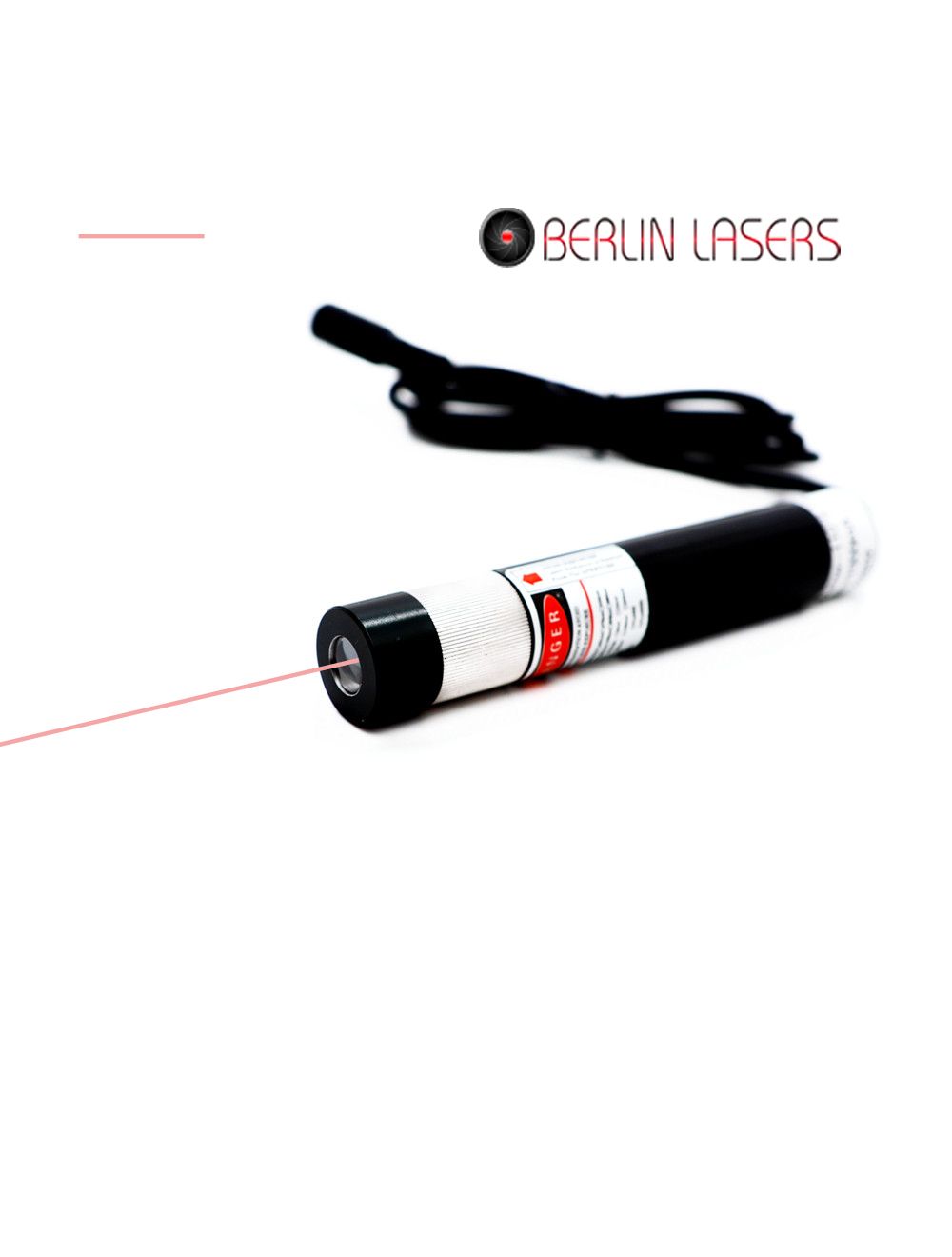

795nm 5mW to 100mW Infrared Line Laser Modules
Long wavelength 795nm infrared line laser modules employ import 795nm infrared laser diodes, qualified optic lens, metel heat sink cooling system inside highly durable metal housing tube. Connecting with external electric power source and night version device or equipment, it makes high photoelectric ability infrared laser light emission, and converts into highly clear and precise infrared line measurement for all night version fields.
- Buy 3 for $107.99 each and save 2%
- Buy 5 for $105.99 each and save 4%
- Buy 10 for $103.99 each and save 5%
Invisible beam 795nm infrared line laser modules enable easy and quick line alignment after professional equipment with night version devices. Employing qualified glass coated lens or Powell lens, and up to 24 hours aging preventing and beam stability tests, the genuine use of IR laser line generator keeps high quality Gaussian or Non Gaussian distribution infrared laser light emission, high stability infrared line alignment for multiple night version precise line measurement fields.
Key features:
Wide output power of 5mW to 100mW 795nm infrared laser module with metal heat sink and APC, ACC driving circuit board assures increasing laser beam stability, no decay light infrared line alignment within 8 to 10 hours use.
5V, 9V 1000mA AC/DC adapter supported laser line generator gets strong environmental stabilization, constant infrared laser beam and IR line projection, and no barrier measurement within freely installed distance of 3 meters.
Glass coated lens or Powell lens within 10 to 110 degree assures high linear quality infrared line within various line lengths, fulfilling highly clear and quick measurement for multiple night version fields.
Adjustable focus optic lens enables high concentration infrared laser light emission, increasing accuracy and fineness infrared line measurement in distance.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Line Laser Modules |
| Wavelength (nm) | 795nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 795nm 5mW to 100mW infrared line laser module and 1 ea AC/DC adapter
Applications: night version line alignment, surveillance, DNA sequencing, biological experiment, spectrum analysis, holography, physics experiment etc
Note: 795nm infrared laser projects invisible and powerful infrared laser radiation and reflection, not capture by human eyes. In order to avoid potential thermal energy hurt to human eyes, users should take laser safety measure and wear correct infrared laser safety goggles so as to achieve secured and free IR line alignment.
