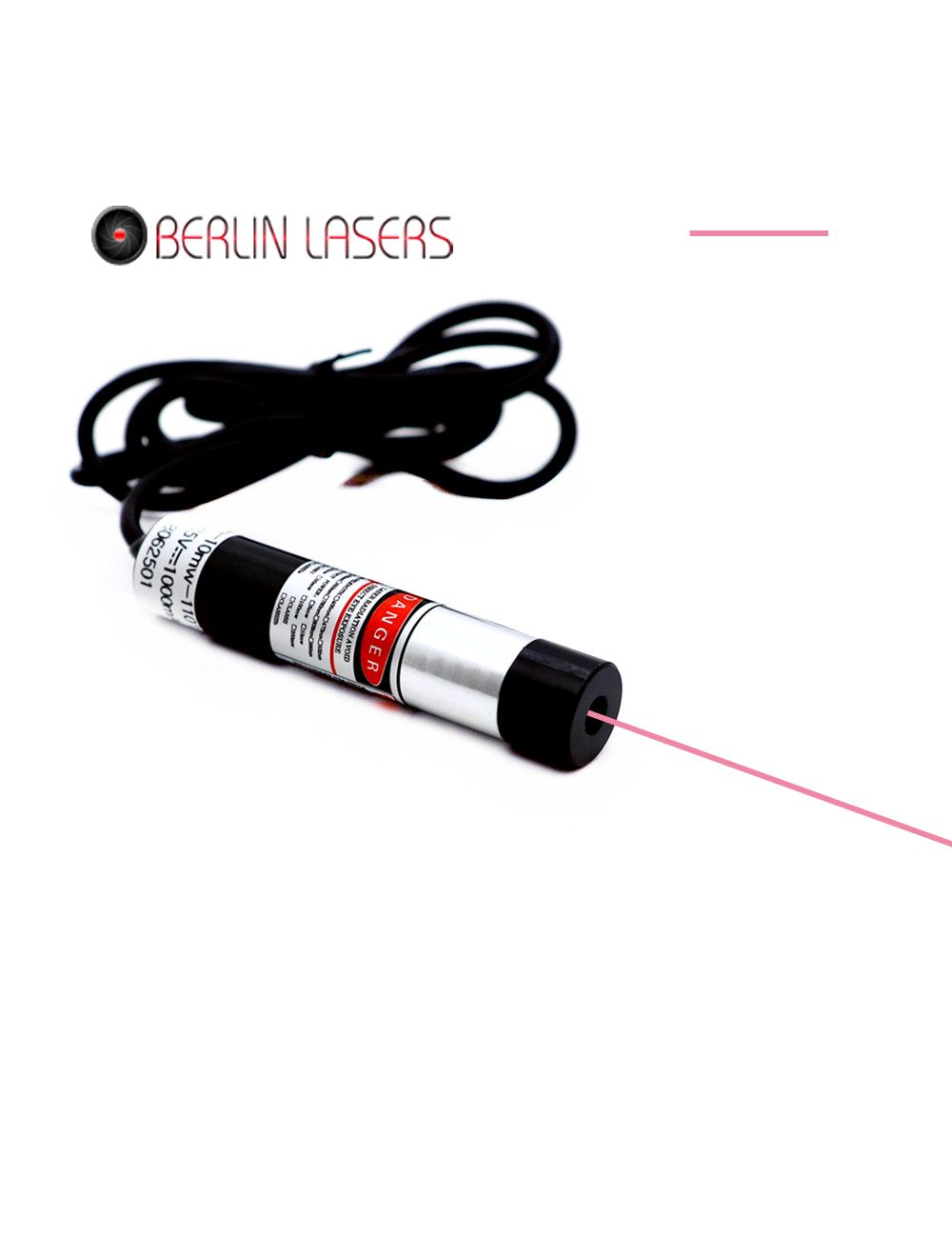

850nm 5mW to 500mW Infrared Line Laser Modules
Long wavelength 850nm infrared line laser module allows easy and convenient use as an accessory part. Equipping with external electric power source and night version device, it generates continuous and high intensity infrared laser light, converts into highly clear and fine infrared reference line projection under night version illumination fields.
- Buy 3 for $97.99 each and save 2%
- Buy 5 for $95.99 each and save 4%
- Buy 10 for $93.99 each and save 6%
Employing import 850nm infrared laser diode, qualified optic lens, APC, ACC driving circuit board, direct diode emission device of 850nm infrared line laser module assures superior nice thermal emitting, and increasing accuracy and stability infrared reference line measurement. Specially designed adjustable focus optic lens enables high concentration infrared laser light emission, and the finest infrared line generation for labs, institutes and colleges.
Key features:
Available with import 850nm infrared laser diode within 5mW to 500mW and metal heat sink cooling system, the genuine infrared line alignment at 40% improvement laser beam stability and no decay light IR line alignment in distance.
5V, 9V 1000mA AC/DC adapter supports 850nm infrared laser with constant infrared laser beam emission, no effect of increasing temperature and serious electric current impact.
Ultra compact 16mm or 26mm diameter anodized aluminum alloy housing tube enables convenient installation, wide operating temperature stabilization, no barrier infrared line projection.
Adjustable focus optic lens enables the highest level of accuracy infrared line measurement in distance.
Glass coated lens or Powell lens within 10 to 110° with up to 24 hours aging preventing test assures high quality IR laser light emission, and high linear quality infrared line projection with various line lengths.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Line Laser Modules |
| Wavelength (nm) | 850nm |
| Output power (mW) | 5mW50mW, 100mW, 200mW, 300mW, 400mW, 500mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIB, IV |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 850nm infrared line laser module, 1 ea AC/DC adapter
Applications: industrial precise IR line alignment, laser medical therapy device, monitoring system, Raman spectroscopy
Note: For operation with invisible beam 850nm infrared lasers, human eyes cannot capture any powerful infrared laser radiation and reflection. Users should take laser safety measure and wear correct laser safety goggles so to assure secured and free infrared line alignment constantly.
