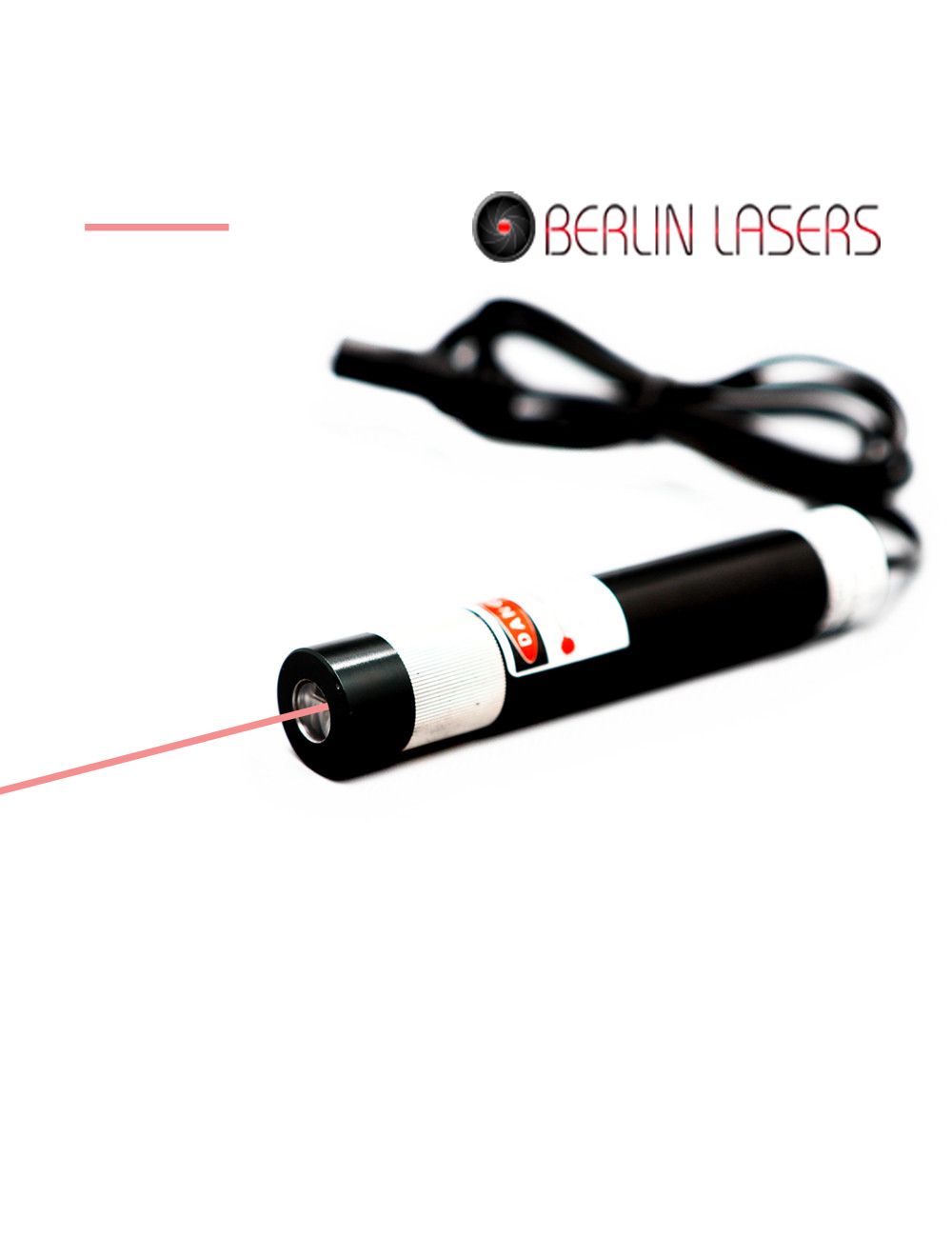

Adjustable Focus 850nm 5mW to 500mW Infrared Laser Line Generators
Direct diode emission 850nm infrared laser line generators apply qualified import 850nm infrared laser diode, qualified optic lens, APC, ACC driving circuit board, project high intensity infrared laser light emission, and high stability infrared reference line projection. Under operation with night version device and external electric power source, 850nm infrared laser module provides the most professional infrared line measurements for high tech, labs, and institutes etc.
- Buy 3 for $97.99 each and save 2%
- Buy 5 for $95.99 each and save 4%
- Buy 10 for $93.99 each and save 6%
Durable and ultra compact designed 850nm infrared laser line generators gets featured advantages of easy operation, good direction, low production cost, and wide operating temperature stabilization. Employing the best quality glass coated lens or Powell lens with glass window in front of beam aperture, it assures the best quality infrared laser light emission and high precision measurement.
Key features:
Wide output power of 5mW to 500mW 850nm infrared laser module with metal heat sink and APC, ACC driving circuit board assures constant output power emission, good beam stability and long lifetime of up to 8,000 hours.
5V, 9V 1000mA AC/DC adapter assures intense infrared laser light and infrared line emission constantly, no effect of overheating or over current impact.
Wide fan angles of 10-110°glass coated lens or Powell lens ensures high linear quality and highly fine infrared line with various line lengths, applying for multiple application fields without light decay or dim.
Up to 24 hours aging preventing test and beam stability test assure up to 85% laser beam stability after 8 to 10 hours use.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Laser Line Generators |
| Wavelength (nm) | 850nm |
| Output power (mW) | 5mW50mW, 100mW, 200mW, 300mW, 400mW, 500mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIB, IV |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 850nm infrared laser line generator and 1 ea AC/DC adapter
Applications: industrial precise infrared line measurement, laser medical treatment device, Raman spectroscopy, and scientific research
