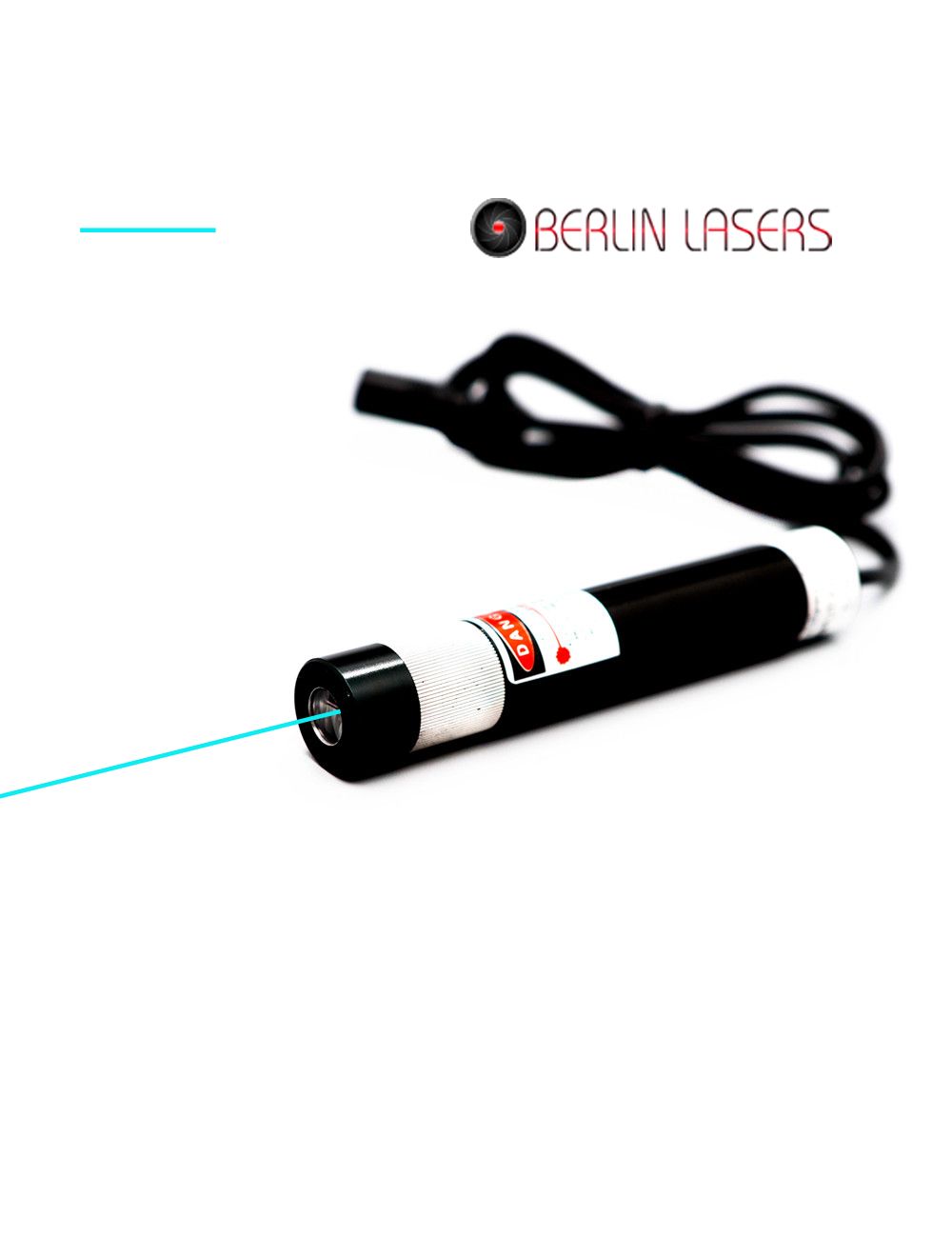

Focus Adjustable 488nm 5mW to 100mW Blue Laser Line Generators
Configured with import 488nm blue laser diode, qualified optic lens, APC, ACC driving circuit board, high brightness 488nm blue laser line generators keep work with high intensity blue laser light emission, and highly reliable and stable blue reference line projection. After easy use of external electric power source and proper use by skilled user or professionals, industrial stabilized 488nm blue laser module provides users the best line aligning source for a lot of application fields, including institutes, labs and prominent colleges etc.
- Buy 3 for $177.99 each and save 1%
- Buy 5 for $175.99 each and save 2%
- Buy 10 for $173.99 each and save 3%
The genuine use of 488nm blue laser line generators enables high quality Gaussian beam or non Gaussian distribution blue laser light emission from qualified glass coated lens and Powell lens. After strict laser beam stability and aging preventing tests up to 24 hours, and special designed glass window in front of beam aperture, direct diode emission made 488nm blue laser assures high stability and high level of accuracy blue line alignment under multiple working environments.
Key features:
Durable anodized aluminum alloy housing tube with 16mm and 26mm diameter leaves sufficient space for inner metal heat sink cooling system. Blue laser line alignment keeps up to 85% laser beam stability after continuous work within 8 to 10 hours.
Import 488nm blue laser diode within 5mW to 100mW assures highly visible blue laser light emission, and clear line generation within maximum distance of 25 meters.
AC/DC adapter provides 488nm blue laser module with continuous blue laser beam and blue line generation, without affect by overheating and over current impact etc.
Qualified glass coated lens and Powell lens within 10 to 110° projects high linear quality blue line with various line lengths and fineness.
Easy screw of adjustable focus optic lens assures immediate blue laser light concentration, and efficient conversion of high brightness and high fineness blue line projection.
Technical data:
| Item | Blue Laser Line Generators |
| Wavelength (nm) | 488nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.5mm; At 2m distance: <2.5mm |
| Beam divergence (mrad) | 1.5mrad |
| Beam mode (before optics) | near TEM00 |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 488nm blue laser line generator and 1 ea AC/DC adapter
Applications: laser show, laser displaying, laser medical imaging, biomedical, and scientific experiment and high tech
Note: After the use of high power 488nm blue laser up to 50mW to 100mW, it generates powerful laser light and thermal energy, which might bring hurt to human eyes and retina. Please remember to wear laser safety goggles and avoid eye exposure to beam aperture so as to get free and safe line alignment constantly.
