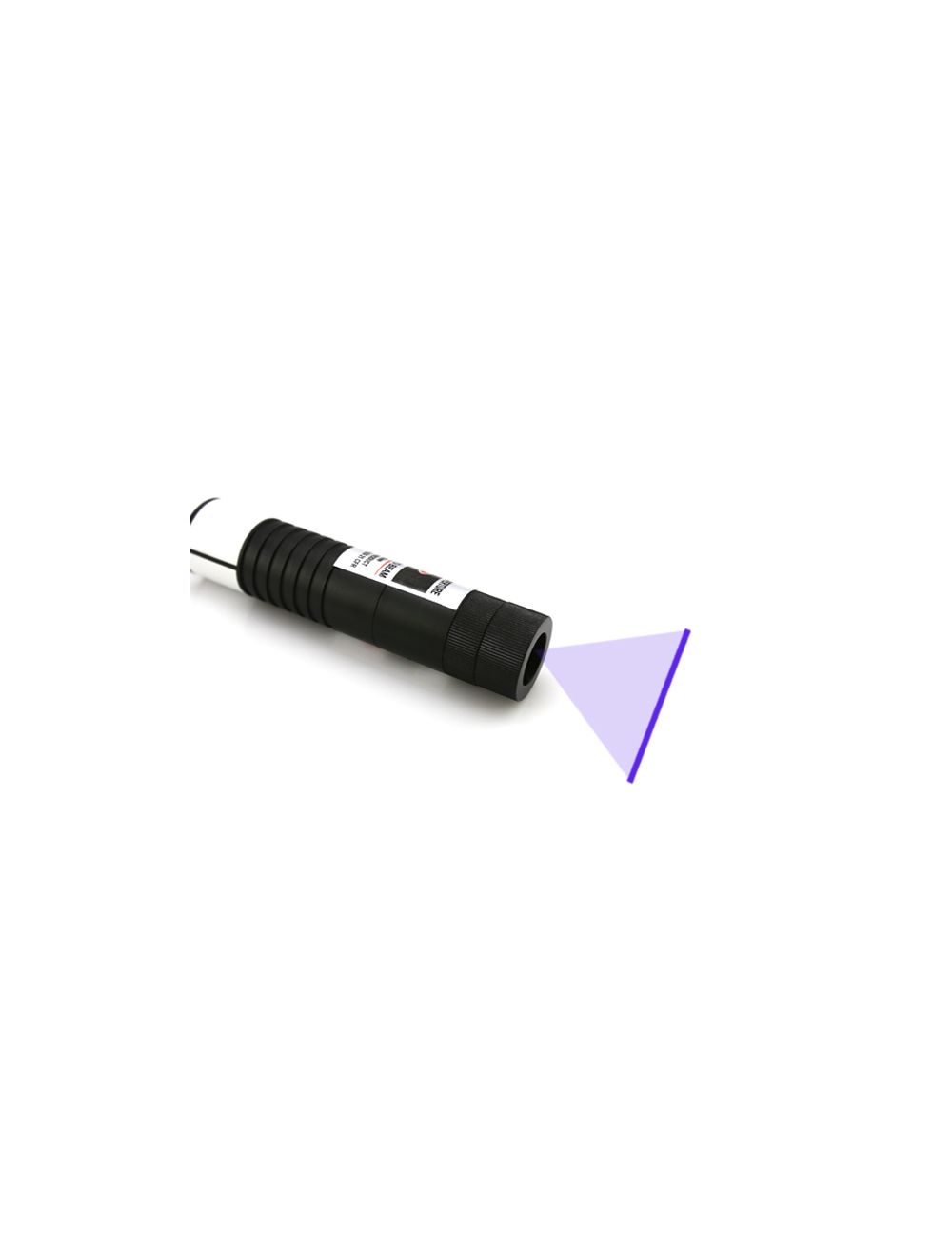

405nm Separate Crystal Lens Violet Laser Line Generator

405nm separate crystal lens violet laser line generator gets a bit longer wavelength than UV lasers, getting moderate brightness violet laser beam with high beam uniformity up 80%. Not as bright as other visible laser devices, however, this special 405nm violet laser module is providing professional violet laser line source for those of prominent institute, lab, college, and research centers etc. Employed by high power 405nm violet laser diode up 50mW to 100mW, the direct diode emission has just made violet line targeting even more stable and reliable in all industrial line use and other high tech line aligning works effectively.

Regular Price $169.99 Special Price $135.98
Availability: In stock
SKU
405-SP-LL
  • Buy 3 for $132.98 each and save 2%
  • Buy 5 for $129.98 each and save 4%
  • Buy 10 for $126.98 each and save 7%

Employed by qualified separate crystal lens, 405nm violet laser line generator obtains non Gaussian violet laser beam and violet laser line emission in real line alignment. Violet reference line keeps super high linear quality and photoelectric ability, keeping the same line brightness from middle part towards both ends. This 405nm violet laser module adopts durable and compact structure design, maintaining stable and convenient line emission under multiple working occasions.

◆ 16mm diameter tube made 405nm violet laser module assures super nice thermal emitting.
External 3V DC input power supply saves a lot of space for metal heat sink cooling system, keeping stable enough line alignment in long term use. Violet laser line alignment gets no affect by strong interference or strong static etc.

◆ APC driving circuit board assures stable violet line alignment constantly.
405nm violet laser module gets the best designed intelligent feedback system, obtaining constant electric current supply and output power supply, supporting daily 8 t0 10 hours continuous work and long serving lifetime of more than 8,000 hours.

◆ Strictly test violet laser line generator obtains stable performance in multiple occasions.
A series of strict tests, including rapid electric current adding test, alternative high and low temperature test, and up to 24 hours aging preventing test assure stable line alignment under multiple working occasions and wide operating temperatures.

Key features:

Compact structure designed violet laser module allows easy carry, operate and adjust.
Wide non-Gaussian separate crystal lens fan angles: 16°, 20°, 30°, 45°, 50°, 60°, 93°, generating different violet laser line length and thickness in distance.
Wide output power range: 50mW, 80mW, 100mW applied for long distance line alignment stably.
Wide AC/DC input power supply operating voltage of 100V to 240V, applicable for majority of countries and regions on the earth.

 Note:

High power 405nm separate crystal lens violet laser line generator only allows correct operation by skilled users or trained uses. Users should adjust 405nm violet laser module to the best line thickness and line direction and operate under special alignment equipment.

Warning! High power 405nm violet laser line module up 50mW emits powerful radiation and thermal energy that can be harmful to human eyes. Never forget to avoid eye exposure at close distance which can cause serious eye damage. Do remember to wear professional laser safety goggles for any 405nm laser line device.

 Technical parameters:

Item Violet Laser Line Generator
Wavelength (nm) 405nm
Output power (mW) 50mW, 80mW, 100mW
Available Fan Angle(degrees) 16°, 20°, 30°, 45°, 50°, 60°, 93°
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) 2.8mrad
Beam mode (before optics) TE00
Focus adjustable? Yes
TTL Modulation No
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L71mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 405nm separate crystal lens violet laser line generator
2. DC input power Supply

Attention: For high powered or OEM 405nm violet laser line generator, please contact us free at support@berlinlasers.com.
