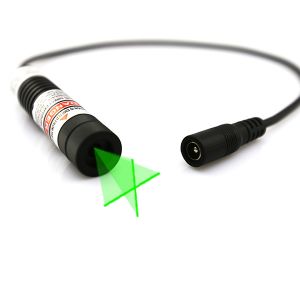

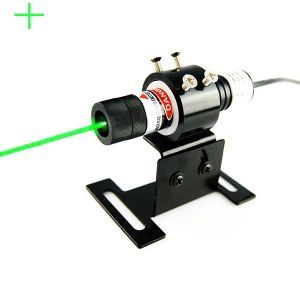

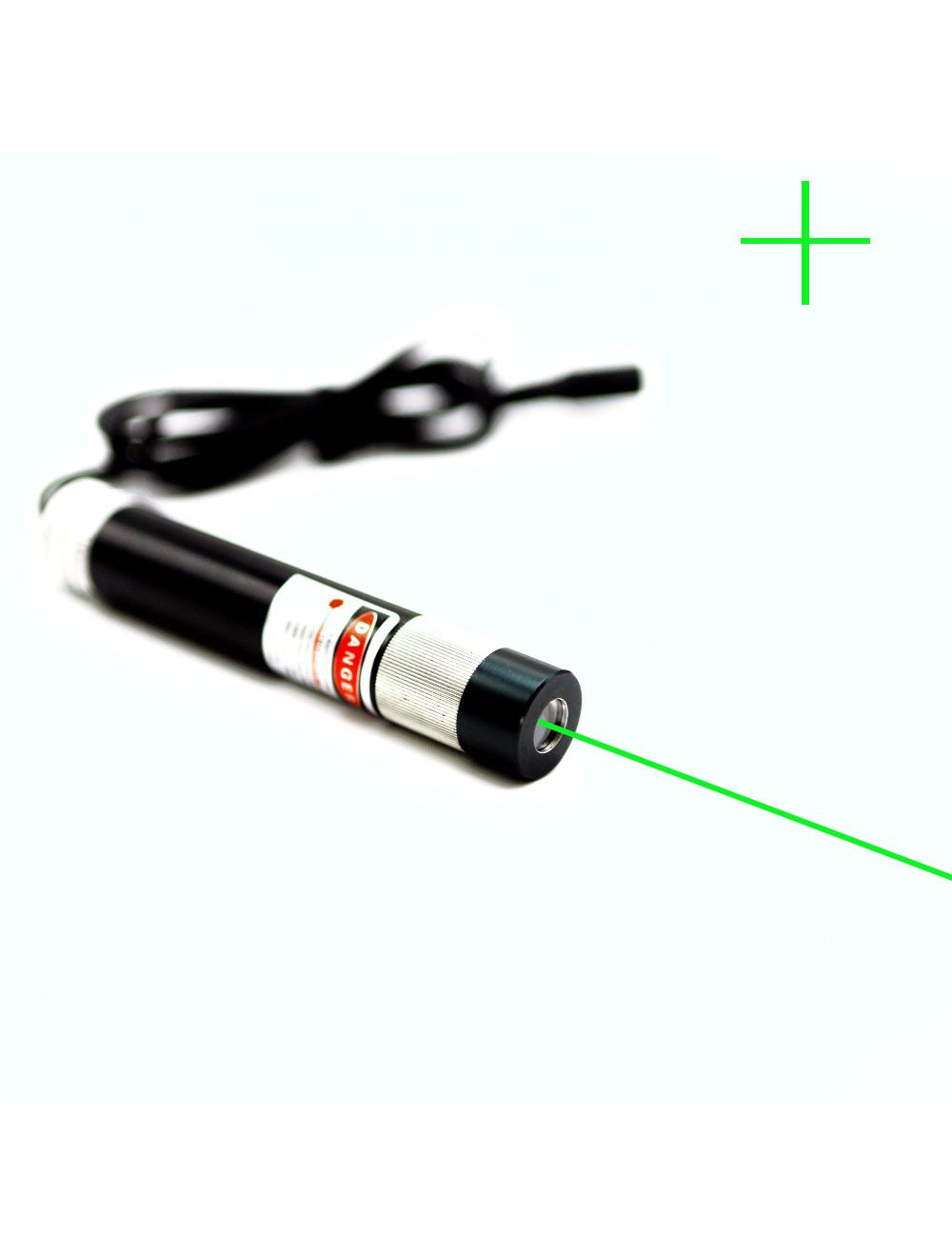

High Power 515nm 100mW to 500mW Green Line Laser Alignment

High Power 515nm 100mW to 500mW Green Line Laser Alignment

High Power 515nm 100mW to 500mW Green Cross Laser Alignment

Employed by an import 515nm green laser diode within 100mW to 500mW and thermal emitting system, configured with a high duration metal housing tube, it is created into a professional cross line measuring device of a high power 515nm green cross laser alignment. Only after easy connects with external electric power source and freely adjusted laser beam focus optic lens, it gets high density forest green laser light source concentration, and high precision forest green cross line projection at great distance effectively.

Regular Price $359.99 Special Price $319.99
Availability: In stock
SKU
HP515nm-GCLA
  • Buy 2 for $316.99 each and save 1%
  • Buy 5 for $313.99 each and save 2%
  • Buy 10 for $309.99 each and save 3%

Instead of any prior cross line drawing work, high power 515nm 100mW to 500mW green cross laser alignment brings users special cross line measurement experience for all precise machinery processing works. Employed by a qualified glass coated lens and good thermal emitting system inside high duration housing tube, high power 515nm green laser module gets strong environmental stabilization, high stability and long lasting two perpendicular green cross line generation for prominent labs, institutes and colleges etc.

Key features:
Import 515nm green laser diode with good thermal stabilization design enables high stability green cross line projection, and up to 85% laser beam stability under long lasting work up to 10 hours per day.
Qualified glass coated lens enables high fineness green cross line projection and high transmittance green laser light source emission at great distance.
Adjustable focus optic lens allows increasing brightness forest green laser light source projection, and high efficiency conversion of increasing fineness cross line measurement for long lasting use.
AC/DC adapter accepts wide range electric current of 100V to 240V. High power 515nm green cross laser alignment maintains stable and constant forest green cross line emission stably, without effect by overheating and over current impact.
APC, ACC driving circuit board enables constant output power and electric current supply, reduced possibility of tube burning out or damage, and long lifetime of more than 8,000 hours.

Technical parameters:

Item High Power Green Cross Laser Alignment
Wavelength (nm) 515nm
Output power (mW) 100mW, 150mW, 200mW, 300mW, 400mW, 500mW
Available Fan Angle(degrees) 10°,15°,110°
Laser Class IIIB
Beam thickness at aperture (mm) At 2m distance: <2.5mm
Beam divergence (mrad) 2.5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation No
Operating voltage(v)  DC=9V, 12V
Operating current (mA)  I<1000mA, 2000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Applications: industrial precise cross line alignment, optical instrument, military targeting, laser medical therapy and surgery, collimation, scientific experiment
Note: For operation of such high power 515nm green cross laser alignment up to 100mW to 500mW projects the most powerful green laser radiation and thermal energy hurt to human eyes. Users should be aware of laser safety issue and wearing correct 515nm wavelength preventing laser safety glasses to assure easy and secured use constantly.

Packing List:

1. High Power 515mW Green Cross Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
