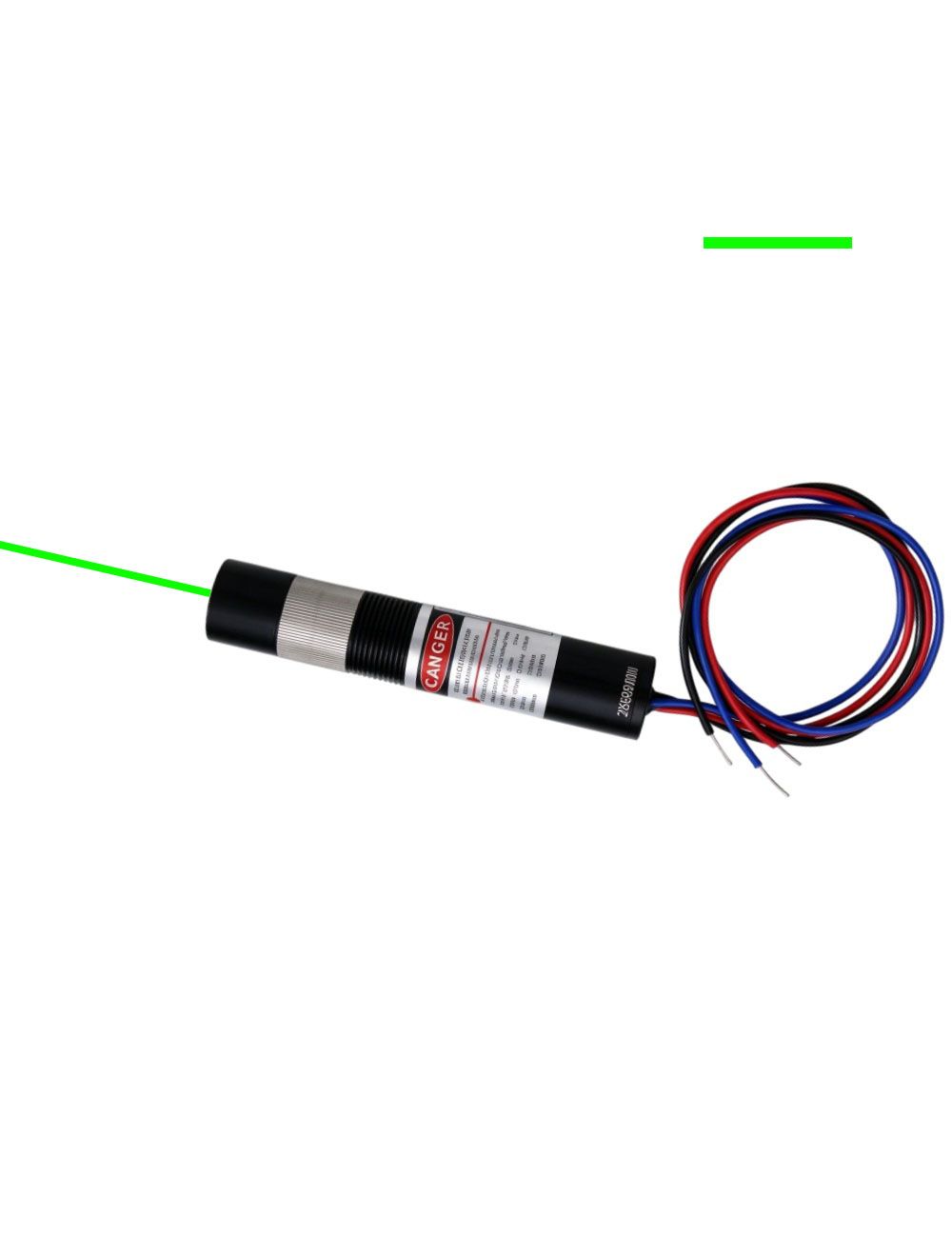

TTL Modulation 532nm Green Line Laser Alignment
An adjustable focus TTL modulation 532nm green line laser alignment featuring DPSS solid state technology and TTL modulation control, it projects a high brightness, sharp green reference line with long range capability, making it ideal for high level of accuracy guidance line indication for industrial cutting alignment, machine vision, and precision measurement.
- Buy 2 for $97.99 each and save 2%
- Buy 5 for $95.99 each and save 4%
- Buy 10 for $93.99 each and save 6%
TTL modulation 532nm green line laser alignment utilizes DPSS tech to output high brightness 532nm green light, shaped into a fine, straight green reference line by a qualified optic lens within 10° to 110° fan angles. Featured by a adjustable focus lens for continuous adjustment of laser line width, supports high speed switching and pulse modulation via TTL signal. It makes precise line guidance for industrial alignment, machine vision, and precision measurement.
Key features:
◆TTL high speed modulation supports external switching and pulsing with 1Hz to 1MHz modulation, allows for on/off laser control.
◆532nm wavelength green DPSS laser with qualified glass coated lens or Powell lens achieves fine, straight green reference line, remains clearly visible in bright outdoor conditions and on reflective surfaces like metal or wood.
◆Flexible focus adjustment enables freely adjusted green line width for both close distance and long distance.
◆Built-in APC driving circuit and metal heat dissipation inside a durable anodized aluminum alloy housing assures industrial grade stability green line production within 24 hours, long lifetime.
Technical parameters:
| Item | TTL Modulation Green Line Laser Alignment |
| Wavelength (nm) | 532nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIA, IIIB, IV |
| Beam thickness at aperture (mm) | <2.0mm; At 2m distance: <2.0mm |
| Beam divergence (mrad) | 1-1.5mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆Industrial cutting and sawing for stone, wood, sheet metal, leather, and fabrics
◆Welding and dispensing for path preview and robotic teaching assistance.
◆Machine vision in 3D scanning
◆Automated production line
◆Scientific Research and Optics: Interferometry, scattering experiments, and optical bench calibration
◆Medical assistance and guidance for therapy
Note: Higher power 532nm green line laser up to 50mW projects thermal energy hurt to eyes seriously. Users should avoid eye exposure to beam aperture and wear 532nm wavelength protective laser safety glasses so as to achieve secured measurement in continuous operation.
Attention: For high powered or OEM TTL modulated 532nm green laser modules, please contact us free at support@berlinlasers.com.
