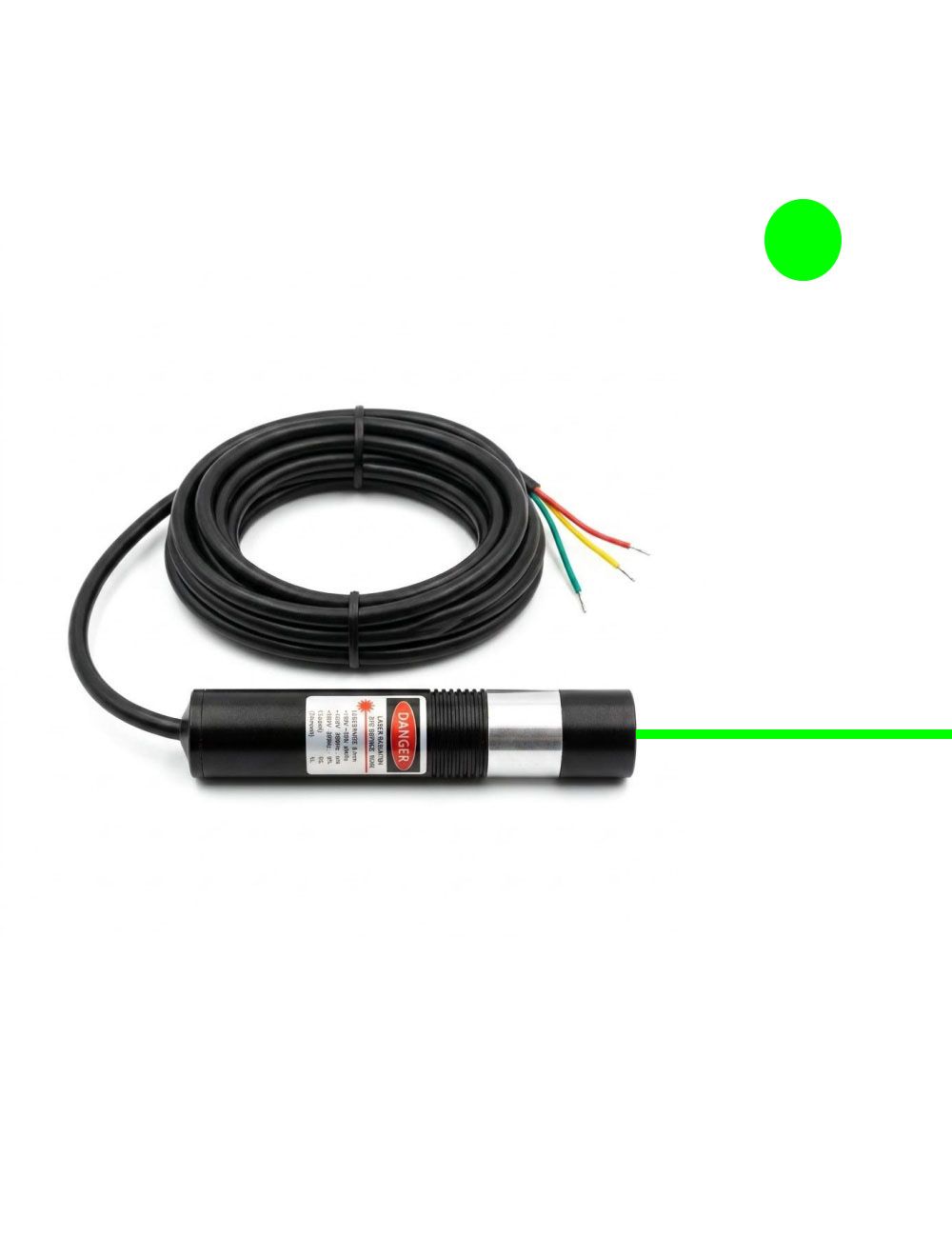

TTL Modulation Adjustable Focus 515nm Green Laser Diode Module
Industrial grade TTL modulation adjustable focus 515nm green laser diode module applies high quality 515nm semiconductor laser diode as its core light source, integrating TTL modulation power source and qualified optic lens, enables long operating time lasted green light source and green reference dot supply for high precision alignment, machine vision positioning and high tech measurements.
- Buy 2 for $147.98 each and save 1%
- Buy 5 for $145.98 each and save 3%
- Buy 10 for $142.98 each and save 5%
High performance TTL modulation adjustable focus 515nm green laser diode module combines a quality 515nm green laser diode, precision optic lens and a constant current driving circuit, supported by TTL signal modulation and focus adjustment, outputting a clear, bright and low divergence circuit green reference dot. It offers superior visibility green light source, which is particularly suitable for applications such as industrial machinery processing, machine vision, scientific experiment and education etc.
Key features:
◆ High speed TTL modulation signal control enables on/off switching and pulse modulation, suitable for machine vision strobe lighting, dynamic speed measurement, and laser marking.
◆ High visibility 515nm green light with adjustable focus can be freely adjusted of both laser beam divergence and focal distance, achieving a fine focal green dot to accommodate various working distances.
◆ Qualified glass coated lens produces a highly circular dot with sharp edges, freely from temperature fluctuation or stray light, ensuring high precision dot positioning and stable imaging.
◆ Built-in APC, ACC driving circuit board enables constant output power and electric current supply. Combined with anodized aluminum alloy housing tube and efficient heat dissipation, it supports continuous operation with stable, reliable performance.
Technical parameters:
| Item | TTL Modulation Green Laser Diode Module |
| Wavelength (nm) | 515nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW |
| Laser Class | IIIA, IIIB, IV |
| Beam thickness at aperture (mm) | <1.2mm |
| Beam divergence (mrad) | <1mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm;D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆ Industrial Manufacturing: CNC machine tool tool-setting, PCB positioning, cutting guide lines for sawing and drilling
◆ Machine Vision: CCD/CMOS camera autofocus assistance, feature point calibration, AOI inspection markers
◆ Scientific Research: Optical experiment alignment, interferometer reference beams, physics demonstration aids
◆ Measurement & Surveying, Automation Equipment
Note: The operation of higher power 515nm green laser up to 50mW generates powerful thermal energy that is harmful to human eye and skin. Do avoid eye exposure to the beam aperture and wear correct 515nm wavelength preventing laser safety glasses to assure secured measurement.
Attention: For high powered or OEM TTL modulated 515nm green laser modules, please contact us free at support@berlinlasers.com.
