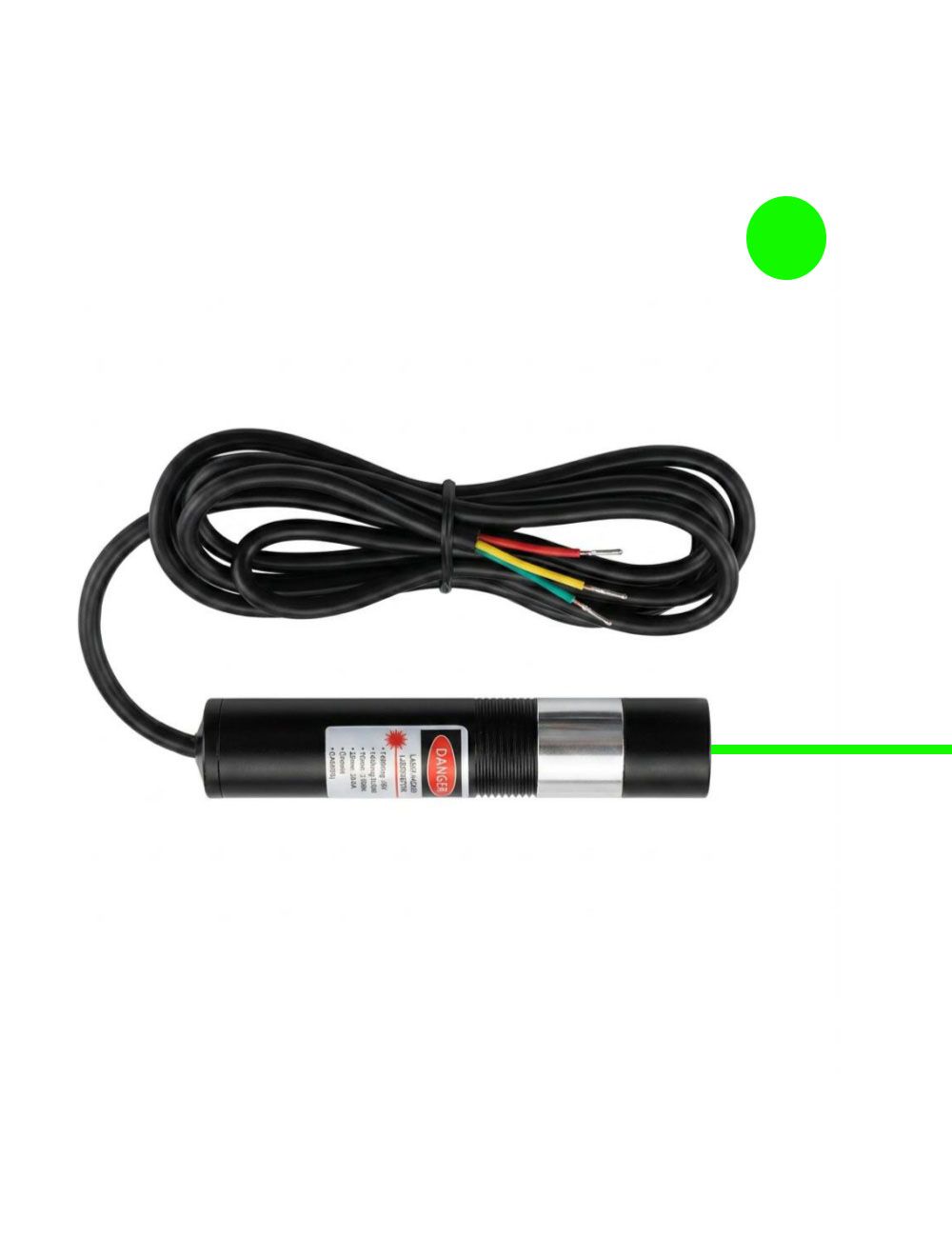

TTL Modulation Adjustable Focus 532nm Green Laser Diode Module
A professional industrial grade TTL modulation adjustable focus 532nm green laser diode module combines advanced 532nm green DPSS laser tech, qualified optic lens and thermal emitting system inside a high duration metal housing tube, enables constant green light source emission, highly precise green reference dot projection for machine vision, precision dot positioning, and laser marking alignment.
- Buy 2 for $87.99 each and save 2%
- Buy 5 for $85.99 each and save 4%
- Buy 10 for $83.99 each and save 7%
The industrial grade TTL modulation adjustable focus 532nm green laser diode module integrates TTL high speed modulation and manual precision adjustable focus optic lens, supports high-frequency modulation (0–50 kHz) with rapid response, delivers high brightness and high visibility green light source and green reference dot for high precision positioning and machine vision applications.
Key features:
◆ Middle wavelength 532nm green light operates a peak sensitivity light emission to the human eye, offers strong resistance to ambient light interference, and high precision green dot alignment within the maximum distance of 25 meters.
◆ Adjustable focus lens converts high concentration green light to a ultra compact size and circular green reference dot, adapting to various working distances.
◆ Anodized aluminum alloy housing tube with built-in APC, ACC driving circuit board and metal heat sink cooling system assures high level of laser beam stability and excellent heat dissipation, highly shock-resistant and capable of stable, continuous 24 hours operation, and long serving lifetime.
Technical parameters:
| Item | TTL Modulation Green Laser Diode Module |
| Wavelength (nm) | 532nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Laser Class | IIIA, IIIB, IV |
| Beam thickness at aperture (mm) | <<2.8mm |
| Beam divergence (mrad) | 1-1.5mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm;D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆ Machine Vision: Light source for fiducial mark positioning with CCD/CMOS cameras
◆ Laser Equipment: Focus indication and origin green reference dot positioning for marking and engraving machines.
◆ Industrial Automation: Workpiece alignment on assembly lines, guidance for robotic arm picking, and auxiliary lighting for barcode scanning.
◆ Precision Measurement: coordinate measuring machines and interferometers.
◆ Scientific Research & Education: Optical experiments, spectroscopic analysis, and physics demonstration aids.
Note: Do not look directly into the green beam during operation of a green laser module up to 50mW, and do not point the laser at people, vehicles, or aircraft. Users should wear laser safety glasses suitable for the specific wavelength.
Attention: For high powered or OEM TTL modulated 532nm green laser modules, please contact us free at support@berlinlasers.com.
