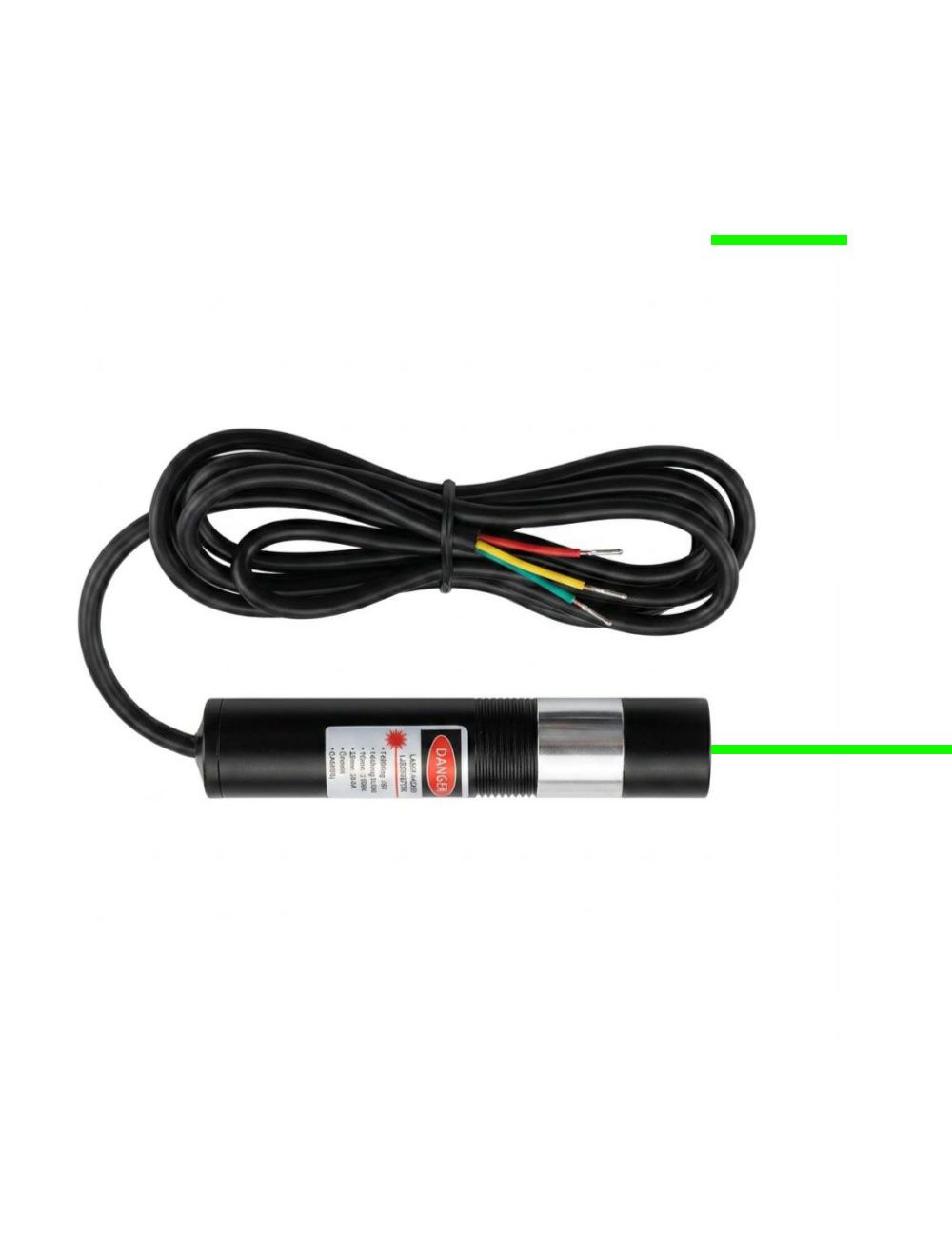

TTL Modulation Adjustable Focus 532nm Green Line Laser Module
Industrial grade TTL modulation adjustable focus 532nm green line laser module generates high visibility and precise linear output, which is designed for precise line positioning and measurement in the fields of machine vision for industrial automation, high precision positioning system, construction level calibration and scientific experiments.
- Buy 2 for $94.99 each and save 2%
- Buy 5 for $92.99 each and save 4%
- Buy 10 for $90.99 each and save 6%
TTL modulation adjustable focus 532nm green line laser module applies a qualified 515nm semiconductor laser diode, qualified optic lens and heat dissipation system inside a high duration metal housing tube, emits high brightness green light and enables freely adjusted laser beam focus, allowing freely adjusted laser line thickness and emitting direction. Built-in TTL modulation power source allows for on/off switching and flashing via external signals.
Key features:
Middle wavelength of 532nm enables superior brightness green light, offers clear, fine and bright green reference line projection under ambient lighting and long operating distance.
Qualified glass coated lens within 10°to 110°fan angles with adjustable focus optic lens produce a perfectly straight green line with excellent straightness and sharp edge, meeting the rigorous demands of high-precision vision algorithms.
TTL high speed modulation supports external on/off control with rapid response, ideal for high speed automated production line, imaging etc.
Durable anodized aluminum alloy housing tube with built-in metal heat sink and APC, ACC driving circuit board enables excellent heat dissipation, stable and reliable green line projection under vibration and electromagnetic interference resistance, suitable for harsh industrial environments.
Technical parameters:
| Item | TTL Modulation Green Laser Line Generator |
| Wavelength (nm) | 532nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 60°, 110° |
| Laser Class | IIIA, IIIB, IV |
| Beam thickness at aperture (mm) | <2.0mm; At 2m distance: <2.0mm |
| Beam divergence (mrad) | 1-1.5mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications: 532nm green line laser features high visibility and precise linear performance, which is widely used in fields such as machine vision for industrial automation, high-precision positioning systems, construction level calibration, and scientific experiments.
Note: Any operation of green cross line laser up to 50mW generates powerful thermal energy that is harmful to human eye and skins. Do avoid eye exposure to the beam aperture and wear proper 532nm preventing laser safety glasses.
Attention: For high powered or OEM TTL modulated 532nm green line lasers, please contact us free at support@berlinlasers.com.
