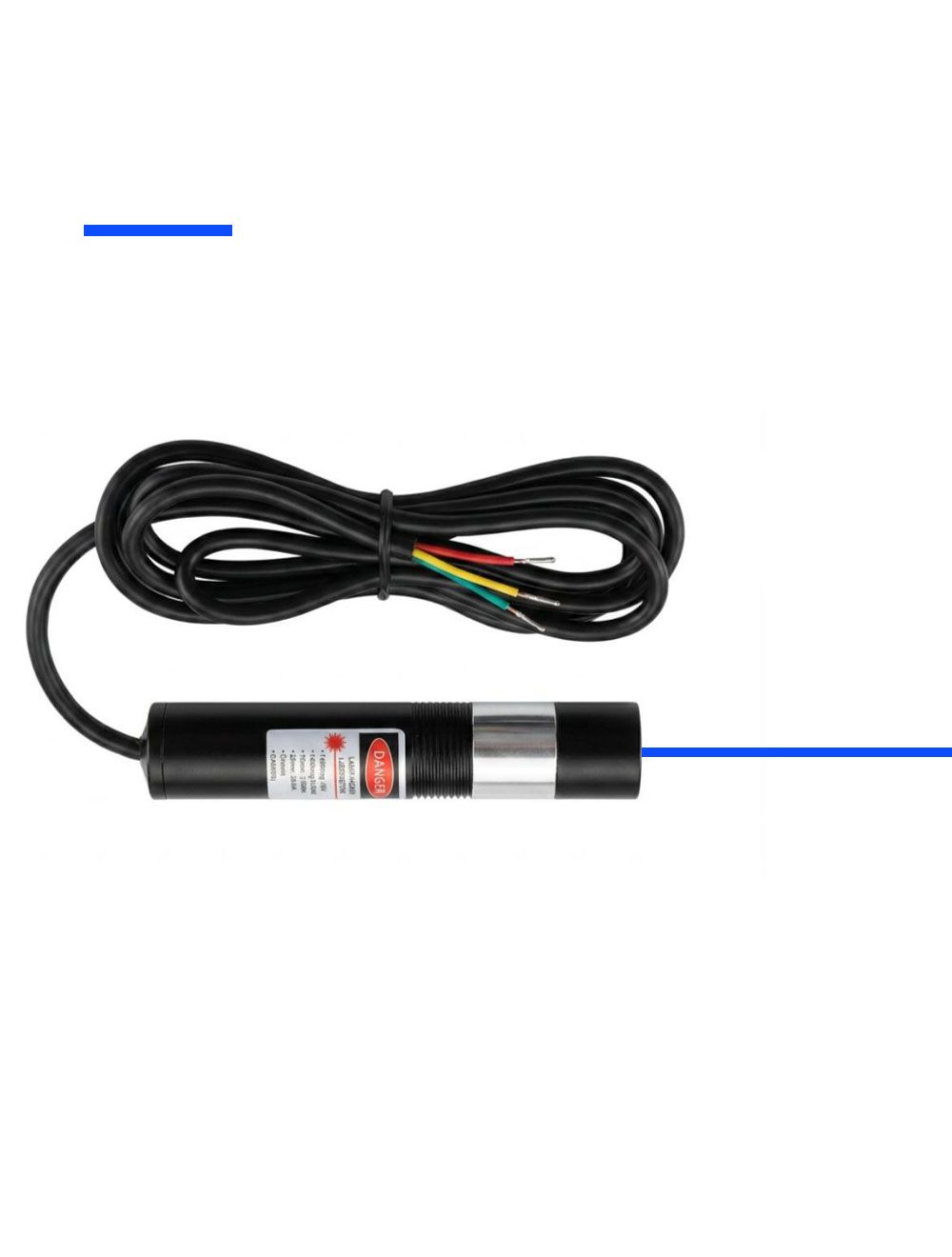

TTL Modulation Focusable 445nm Blue Line Laser Alignment
TTL modulation focusable 445nm blue line laser alignment features TTL modulation and adjustable focus, generating high brightness and industrial grade stability blue light and blue reference line, applicable for precise line projection in industrial cutting alignment, machine vision, dimensional inspection, and laser processing.
- Buy 2 for $117.99 each and save 2%
- Buy 5 for $115.99 each and save 3%
- Buy 10 for $113.99 each and save 5%
The TTL modulation focusable 445nm blue line laser alignment applies a short wavelength 445nm semiconductor laser diode, qualified optic lens and heat dissipation design inside a high duration metal housing tube, emits 445nm blue light in distance. It supports external high-frequency signal control and line-width adjustment, capable of projecting high contrast, straight and fine blue line even in high-ambient-light environments.
Key features:
◆ 445nm blue laser diode( 50mW-100mW) with glass coated lens or Powell lens(10°-110°) offers high contrast blue light, clearly visible, fine and straight blue line in bright light, long distance, and on reflective surfaces.
◆ 445nm blue laser module supports external TTL high speed modulation with on/off switch and is compatible with PLCS, enables convenient blue line alignment for both industrial and high tech.
◆ Focusable adjustable lens design enables free adjustment of blue line width and projection distance, meeting precision alignment for various workstations.
◆ Metal heat sink dissipation and built-in constant current driver inside an aluminum alloy housing tube enables stable, continuous operation without performance degradation.
Technical parameters:
| Item | TTL Modulation Blue Line Laser Alignment |
| Wavelength (nm) | 445nm |
| Output power (mW) | 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIB, IV |
| Beam thickness at aperture (mm) | At 2m distance: <2.5mm |
| Beam divergence (mrad) | 3mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆ Industrial machining: cutting path indication on CNC machines, saws, and shears
◆ Automated production lines: conveyor belt edge detection, coil alignment, and robotic picking
◆ Scientific research: optical path alignment, machine vision edge detection, 3D scanning and modeling.
◆ Construction and outdoor surveying
Attention: For high powered or OEM TTL modulated 445nm blue line laser alignments, please contact us free at support@berlinlasers.com.
