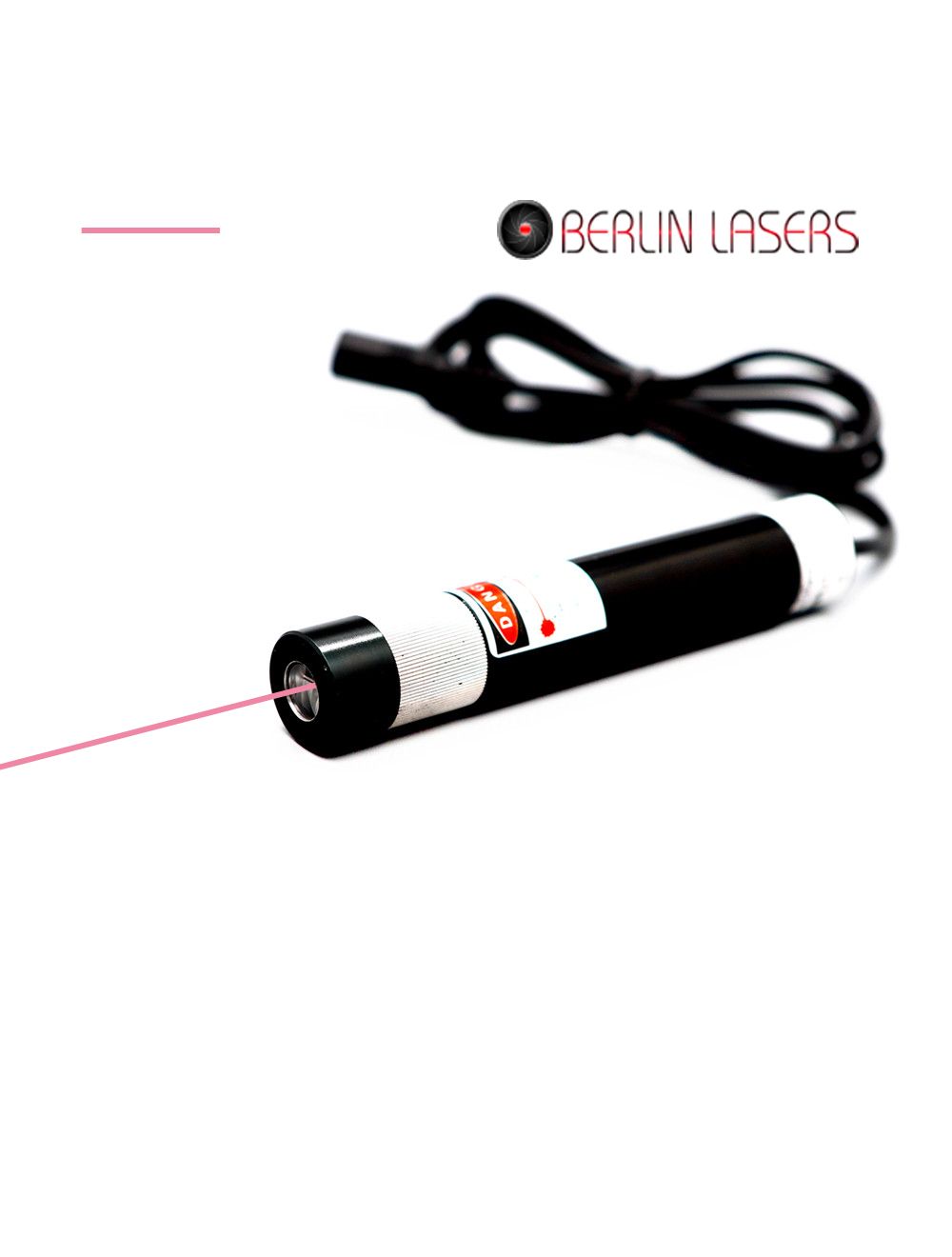

Night Version 5mW 1310nm Infrared Laser Line Generators

Intense beam 5mW 1310nm infrared laser line generators project invisible infrared laser beam and infrared reference line directly through 1310nm infrared laser diode. Equipping with night version instrument and external electric power source, it assures superior nice thermal emitting, high stability, low cost and good direction infrared line alignment for all night version fields.

was $169.99 Special Price $139.99
Availability: In stock
SKU
1310nm-ILLG
  • Buy 3 for $137.99 each and save 1%
  • Buy 5 for $135.99 each and save 3%
  • Buy 10 for $133.99 each and save 4%

Night version designed 5mW 1310nm infrared laser line generators apply import infrared laser diode, qualified optic lens and APC, ACC driving circuit board, assures constant and high stability infrared line projection. After easy adjustment of infrared line fineness and direction, it makes no barrier and high precision line alignment in distance.
Key features:
Import 1310nm infrared laser diode with metal heat sink and APC, ACC driving circuit board enables high stability infrared line projection within 8 to 10 hours, and long lifetime.
5V 1000mA AC/DC adapter assures constant infrared laser beam and infrared line projection, and long lasting 8 to 10 hours use without beam blur or decay.
High duration anodized aluminum alloy housing tube gets wide operating temperature stabilization, stable performance, and good thermal emitting.
10-110 Degree fan angles glass coated lens or Powell lens projects high quality Gaussian or uniform distribution infrared laser light emission, and high fineness infrared line measurement.
Adjustable focus optic lens gets high concentration infrared laser light emission and the finest infrared line projection in distance.
CW or pulsing laser selectable
Technical data:

Item Infrared Laser Line Generators
Wavelength (nm) 1310nm
Output power (mW) 5mW
Available Fan Angle(degrees) 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110°
Laser Class IIIa
Beam thickness at aperture (mm) 10cm distance:<2.5mm
Beam divergence (mrad) 6mrad
Beam mode (before optics) TE
Focus adjustable? Yes
Operating voltage(v)  DC=5V
Operating current (mA)  I<1000mA
Operating temperature(℃) 10℃~45℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L91mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Packing list: 1 ea 1310nm infrared laser line generator and 1 ea AC/DC adapter
Applications: laser medical therapy equipment, infrared laser communication, scientific research, optical instrument, and infrared laser sensor
Note: The operation of 1310nm infrared laser projects invisible and powerful infrared laser radiation and reflection, and generates thermal energy hurt to human eyes. Please remember to wear correct infrared laser safety goggles and glasses so as to get free and safe use perfectly.
