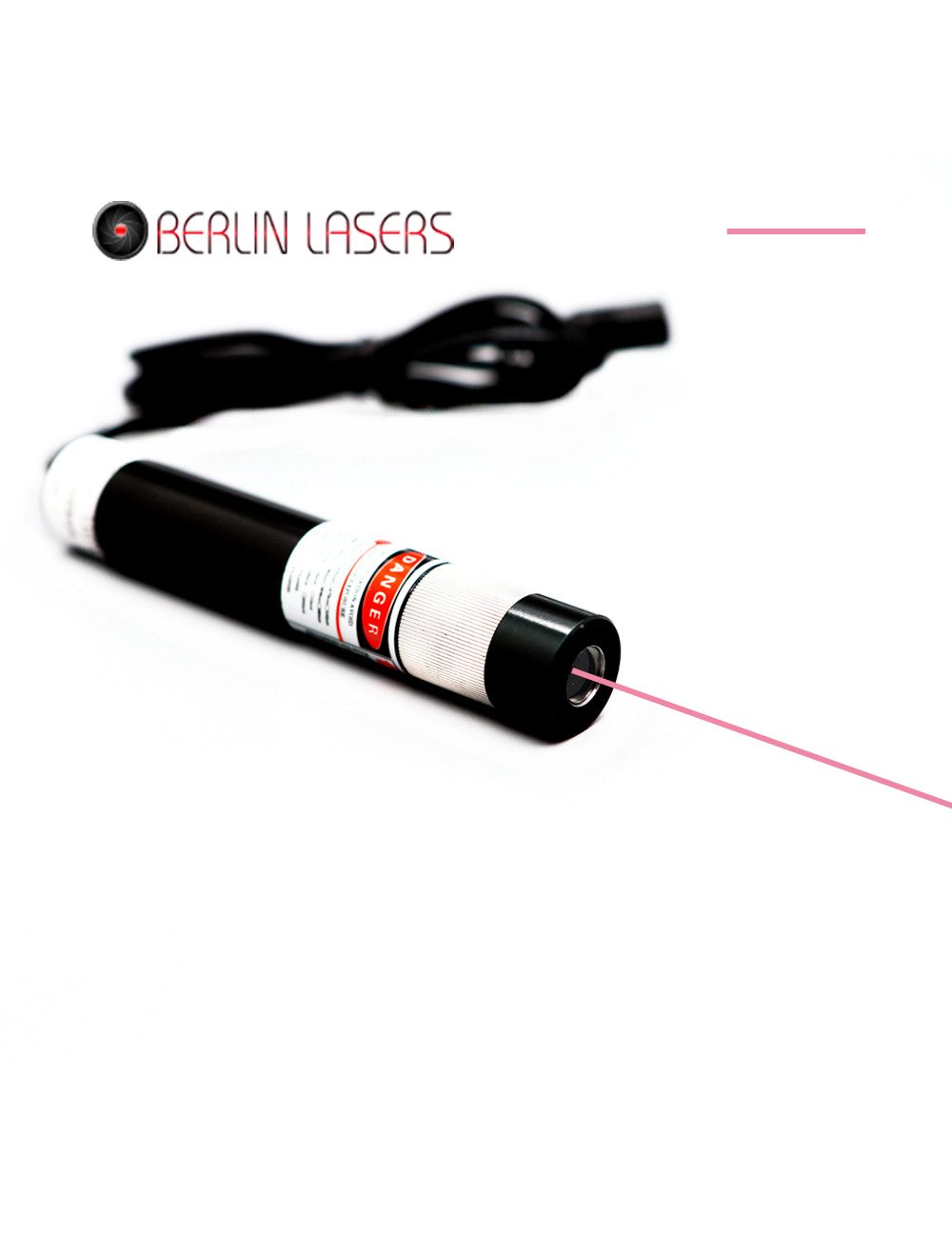

Night Version 1470nm 100mW to 1000mW Infrared Line Laser Modules
Long wavelength 1470nm infrared line laser modules provide the most professional infrared line measurement for all night version application fields. Equipping with night version device and external electric power source, it projects high intensity and high photoelectric ability infrared laser light, and converts into high precision and good beam stability infrared line alignment in distance.
Invisible beam 1470nm 100mW to 1000mW infrared line laser modules gets featured advantages of ultra compact structure, good beam stability, low production cost and good direction. Employed by qualified glass coated lens or Powell lens, and up to 24 hours aging preventing test and glass window, it makes perfect protection of itself and high fineness infrared line emission for multiple fields.
Key features:
Import 1470nm infrared laser diode with metal heat sink cooling system and APC, ACC driving circuit board assures good thermal emitting, increasing beam stability and long operating lifetime.
5V, 9V 1000mA AC/DC adapter assures constant infrared laser beam and infrared line projection, no light decay under increasing temperature and serious electric current impact.
Ultra compact 16m m or 26mm diameter anodized aluminum alloy housing tube assures good thermal emitting, easy operation, and noncontact IR line alignment.
Wide fan angles 10 to 110 degree glass coated lens or Powell lens projects high linear quality and high fineness infrared line measurement.
Adjustable focus optic lens gets concentrated infrared laser light emission and converts into high precision infrared line in distance.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Line Laser Modules |
| Wavelength (nm) | 1470nm |
| Output power (mW) | 100mW, 200mW, 300mW, 500mW, 1000mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIB, IV |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 1470nm infrared line laser module and 1 ea AC/DC adapter
Applications: infrared line measurement, infrared laser communication, spectrum analysis, and scientific experiment
Note: Invisible beam emitting 1470nm infrared laser projects powerful infrared laser radiation and reflection, causing potential thermal energy hurt to human eyes or retina. Please avoid eye exposure to beam aperture and wear laser safety goggles and glasses so as to assure safe line measurement.
