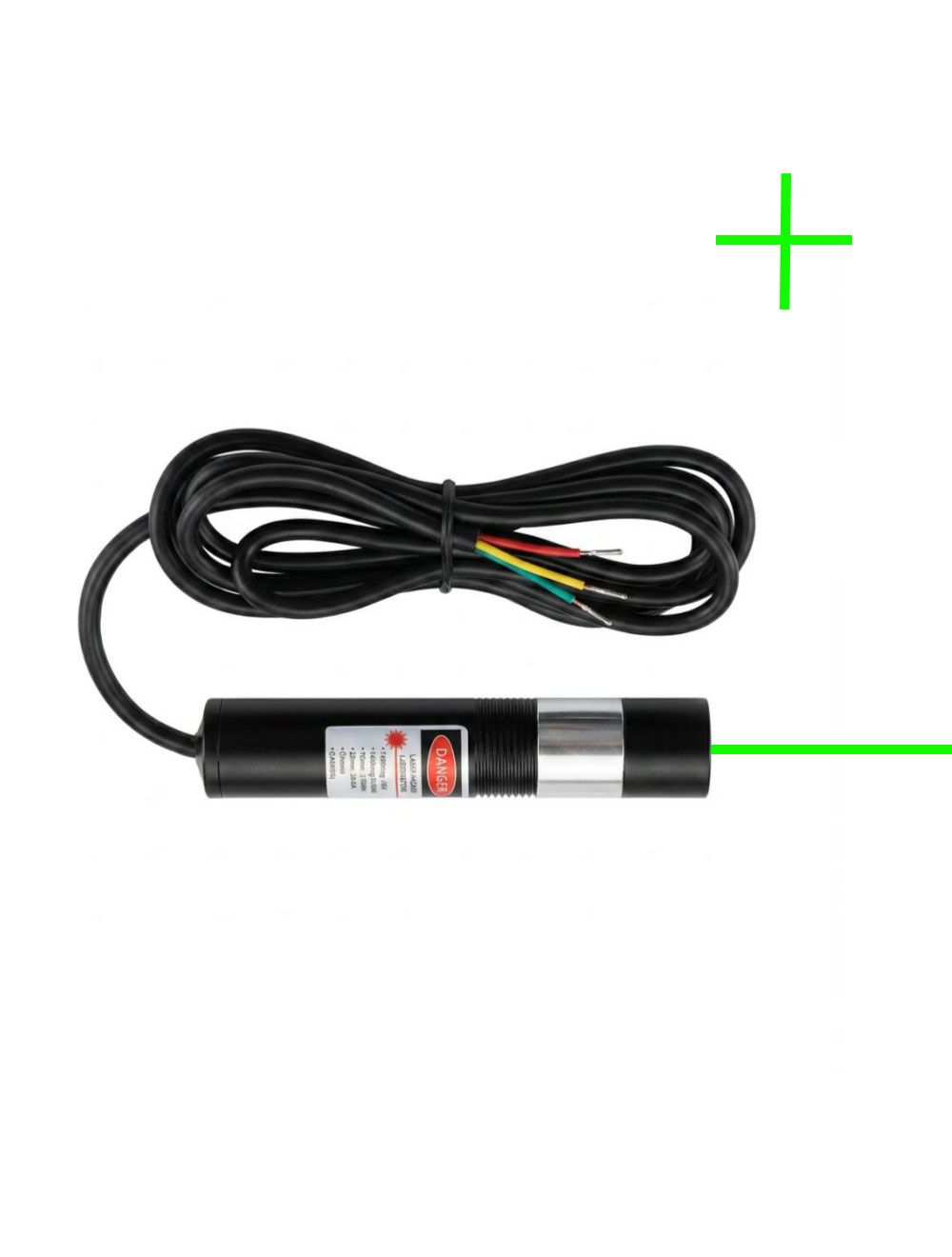

TTL Modulation Adjustable focus 532nm Green Cross Line Laser Module
A professional grade TTL modulation adjustable focus 532nm green cross line laser module features by TTL high speed modulation and adjustable focus system. It delivers high accuracy green vertical and horizontal lines projection for SMT alignment, sawing guidance, and construction layout. It is built to industrial standards for vibration resistance, and OEM customization is available.
- Buy 2 for $117.99 each and save 2%
- Buy 5 for $115.99 each and save 3%
- Buy 10 for $113.99 each and save 5%
TTL modulation adjustable focus 532nm green cross line laser module is designed with advanced 532nm green DPSS laser and qualified glass coated lens, remains highly visible green cross line even in bright workshop light. With TTL high speed modulation and adjustable focus optic lens, it integrates two mutually perpendicular laser lines into a single high brightness beam, creating a crisp, sharp cross intersection, applied for high precision cross line calibration and alignment fields.
Key features:
◆ High visibility and brightness 532nm pure green light helps reduce operator eye fatigue.
◆ Qualified glass coated lens with 10°, 15° and 110° fan angles with adjustable focus optic lens enables increasing precision and brightness orthogonal cross line projection for high precision cross line alignment.
◆ TTL high speed modulation. 0–100kHz square wave modulation (0V off / 5V, 9V, 12V on), suitable for synchronous control and dynamic scanning. It is ideal for dynamic capture and imaging systems, effectively preventing image blur.
◆ Built in metal heat sink cooling system and APC, ACC driving circuit board achieves industrial grade reliability. It is resistant to impact and electromagnetic interference, suitable for industrial environments involving dust, oil, and minor vibrations.
Technical parameters:
| Item | TTL Modulation Green Cross Line Laser Module |
| Wavelength (nm) | 532nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIa, IIIB, IV |
| Beam thickness at aperture (mm) | <2.8mm; At 2m distance: <2.0mm |
| Beam divergence (mrad) | <4mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆ SMT & Electronics Manufacturing
◆ Woodworking and Stone Processing: Precision cutting guidance for saws, panel sizing/centering, and origin calibration for CNC engraving machines.
◆ Construction & Engineering
◆ Automated Production Lines
◆ Scientific Research & Medical: Reference lines for microscopy, optical mounts for physics experiments, and positioning for physical therapy equipment.
Note: Direct viewing of the green laser beam or observing it brings potential thermal energy hurt to both eye and skin. Do remember to wear laser safety glasses rated for the 532nm wavelength during installation and adjustment. Do not project the laser into areas with human activity or traffic routes.
Attention: For high powered or OEM 532nm TTL modulation green cross line lasers, please contact us free at support@berlinlasers.com.
