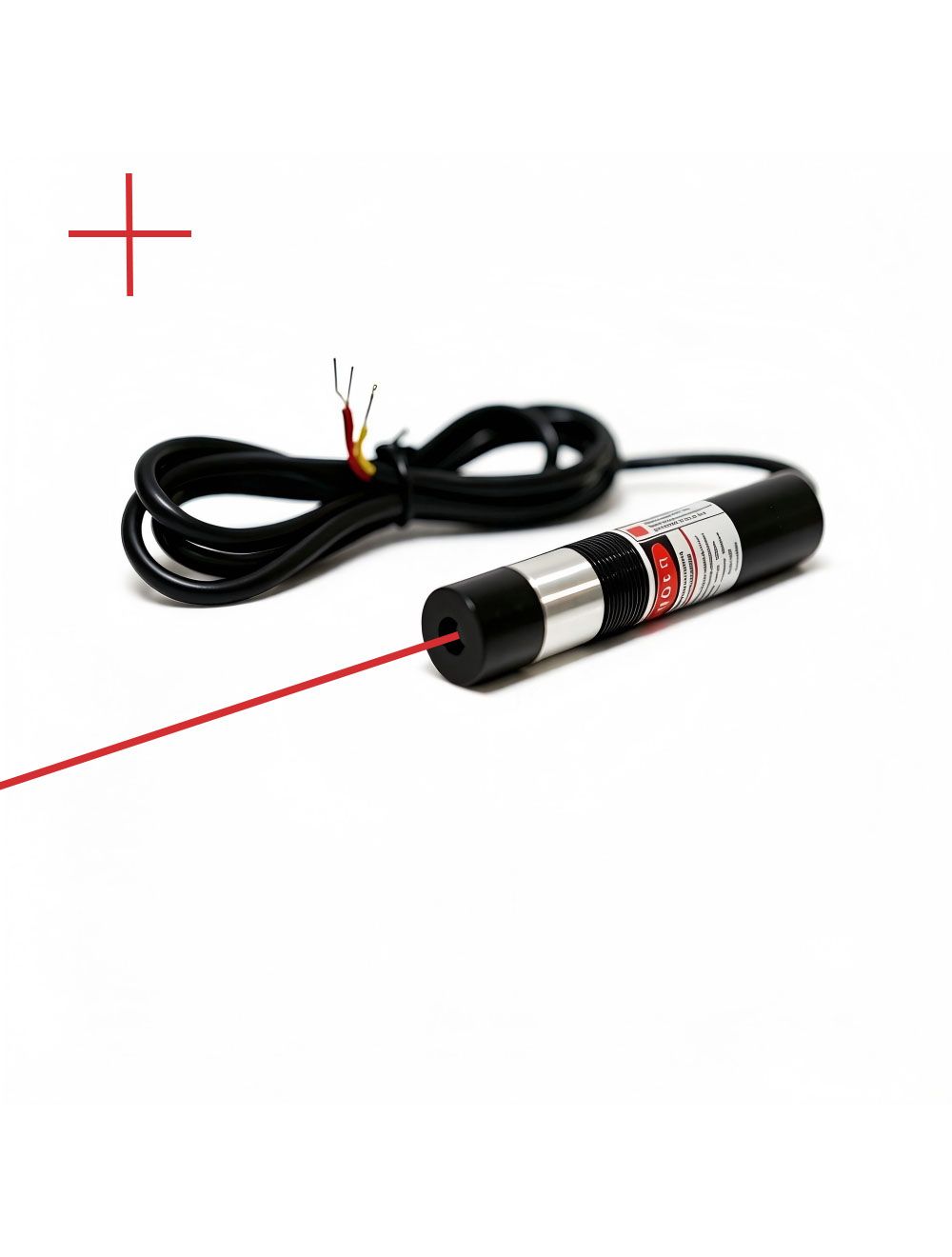

TTL Modulation Adjustable Focus 635nm Red Cross Line Laser Module
TTL modulation focusable 635nm red cross line laser module supports TTL modulation to control laser switch. Focus lens enables adjustment of cross line thickness. It outputs pure red light, converts into clear and fine red cross line with stable performance, widely used in machine vision alignment, industrial cross line alignment, laser cutting and automation equipment.
- Buy 2 for $110.99 each and save 2%
- Buy 5 for $108.99 each and save 4%
- Buy 10 for $106.99 each and save 5%
TTL modulation adjustable focus 635nm red cross line laser module supports TTL signal modulation and allows for laser on/off control via electrical signals. Integrating 635nm red laser diode, glass coated lens and adjustable focus optic lens inside a high duration metal housing tube, it outputs fine, clear and straight two perpendicular red lines for both indoor and outdoors. The metal housing and stable driver ensure stable operation over extending periods and easy installation.
Key features:
◆ Built-in metal heat sink and APC, ACC driving circuit board inside anodized aluminum alloy housing tube enables good heat dissipation, vibration resistant, low heat generation, suitable for long operating time lasted cross line projection and long serving lifetime.
◆ TTL high speed modulation enables high speed controlled laser on/off the state, allows for digital control and pulse output, supporting continuous red cross lines generation.
◆ Import 635nm wavelength semiconductor laser diode and qualified glass coated lens with 10° , 15° and 110° enables high precision two perpendicular red lines emission. Adjustable focus lens supports for freely adjusted cross line thickness.
Technical parameters:
| Item | TTL Modulation Red Cross Line Laser Module |
| Wavelength (nm) | 635nm |
| Output power (mW) | 5mW-100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIa, IIIb |
| Beam thickness at aperture (mm) | 2m beam diameter: <2.2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆ Industrial machine tools, sawing machines, cutting equipment marking and setting
◆ Packaging printing, textile printing and dyeing, woodworking and stone machinery
◆ CNC machining centers, 3D scanning
◆ Medical instruments patient positioning alignment, detection equipment
◆ Automated production lines
Note: Direct eye contact with the red laser beam is prohibited. Any eye exposure to red cross line laser up to 50mW might cause thermal energy hurt. It is recommended to wear 635nm wavelength laser safety goggle during debugging.
Attention: For high powered or OEM 635nm TTL modulation red cross line laser modules, please contact us free at support@berlinlasers.com.
