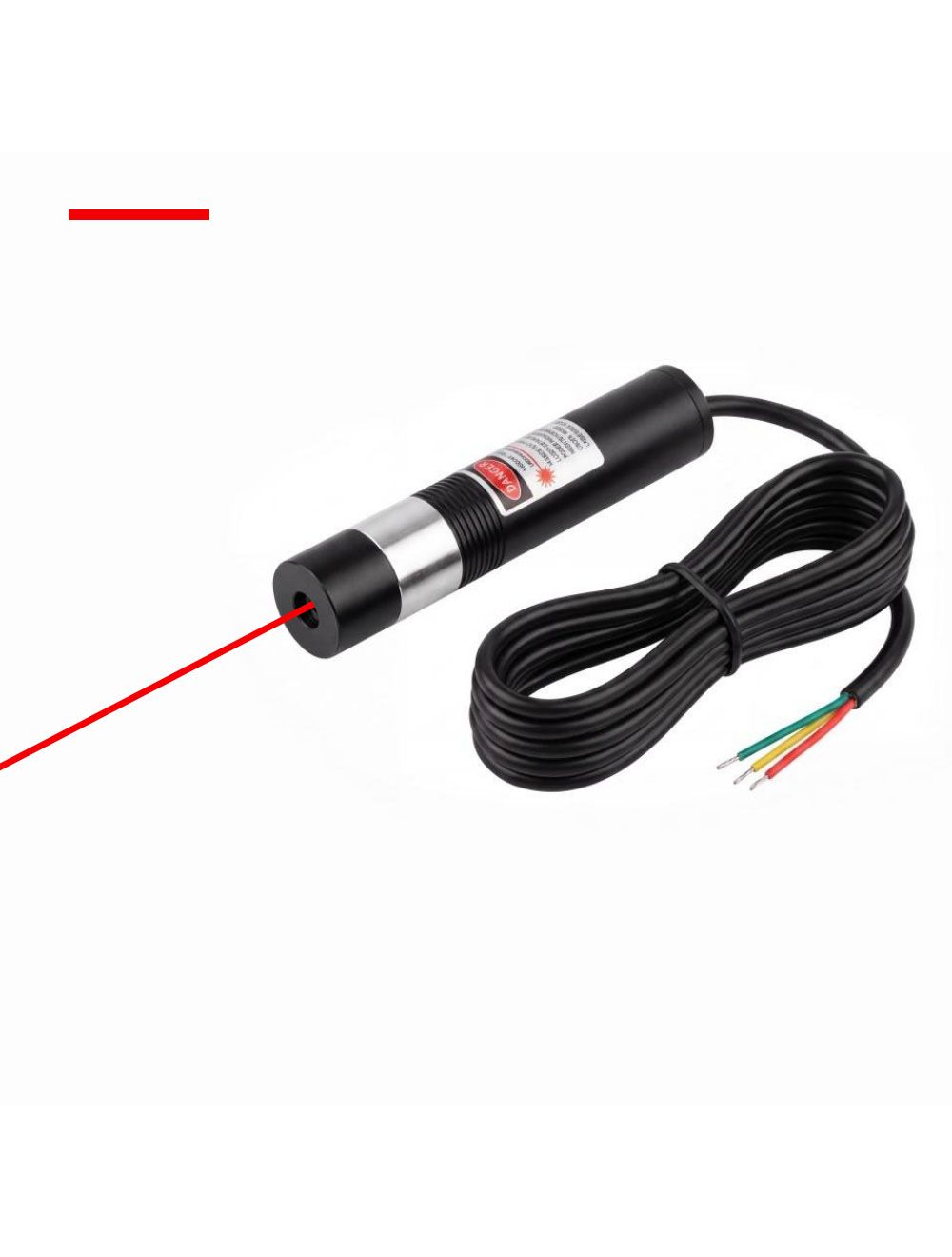

TTL Modulation Adjustable Focus 635nm Red Line Laser Module
TTL modulation adjustable focus 635nm red line laser module features TTL high speed modulation control and adjustable focus lens, allows for flexible adjustment of laser line width for high level of accuracy line alignment use. It enables easy integration and operation, suitable for automated applications such as machine vision, industrial positioning, cutting and marking, and inspection experiments.
- Buy 2 for $87.99 each and save 2%
- Buy 5 for $85.99 each and save 4%
- Buy 10 for $83.99 each and save 7%
TTL modulation adjustable focus 635nm red line laser module supports TTL modulation for external on/off control. Equipped with qualified 635nm wavelength semiconductor laser diode, glass coated lens and focus adjustable lens, delivers fine, straight and bright red reference line for long time operation. It is widely used for machine vision, industrial line alignment in cutting, milling, grinding, positioning marking, measurement and inspection works.
Key features:
◆ High purity 635nm red light with low beam divergence and TEM00 laser beam mode enables the finest, the brightest and no tail red reference line projection for long distance and visible light environments.
◆ Qualified glass coated lens within 10°–110°fan angles with adjustable focus lens achieves increasing accuracy and brightness red reference line projection at both close and long distances.
◆ TTL high speed modulation enables rapid controlled laser on/off the state, allows for digital control and pulse output, supporting continuous red reference line projection, facilitating integration with CNC systems.
◆ Built-in metal heat sink and APC, ACC driving circuit board inside a durable anodized aluminum alloy housing tube enables superior heat dissipation, high beam stability, and long serving lifetime.
Technical Data:
| Item | TTL Modulation Red Laser Line Generator |
| Wavelength(nm) | 635nm |
| Output power(mW) | 5mW-100mW |
| Laser Class | IIIa, IIIb |
| Available Fan Angle (degree) | 10°, 20°, 30°, 45°, 60°, 110° |
| Beam diameter at aperture(mm) | <2.0mm; 2m diameter: <2.0mm |
| Beam divergence(mrad) | 5 mrad |
| Beam mode | TEM00 |
| Focus adjustable? | Yes |
| Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | Dia16mm×Length71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | ≥8000 hours |
| Warranty | 6 months |
Applications:
◆ Guidance line for industrial cutting tables, embroidery machines, garment fabric cutting marking
◆ Woodworking saws, stone bridging, metal sheet cutting/welding tool setting
◆ Packaging and printing deviation correction
◆ Machine tool and automation equipment zero-position calibration, 3D scanning structured light assistance
◆ Machine vision guidance, medical instrument indication, measurement and mapping baselines
Note: Lasers are directional light sources. Direct eye exposure to powerful red light light might cause thermal hurt. Do remember to wear proper 635nm wavelength preventing laser safety goggles.
Attention: For high powered or OEM TTL modulated 635nm red line lasers, please contact us free at support@berlinlasers.com.
