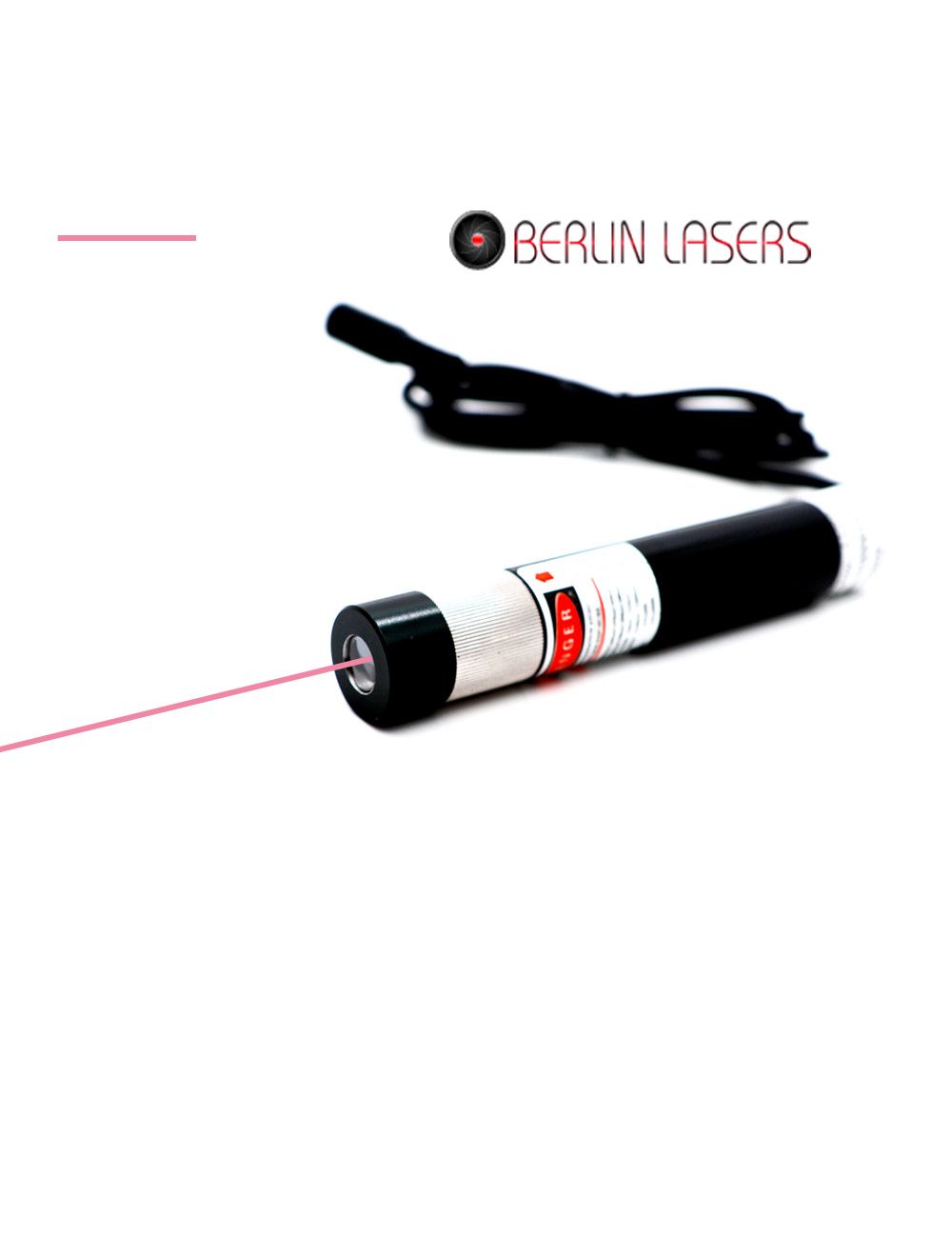

930nm 100mW 200mW 300mW 400mW 500mW Infrared Laser Line Generators
Employed by import 930nm infrared laser diode, qualified optic lens, APC, ACC driving circuit board, 930nm infrared laser line generators project high intensity and high photoelectric infrared laser light source of beam aperture. Under operation with night version device and external electric power source, after proper use by professionals, 930nm infrared laser modules keeps constant infrared line generation for all night version fields.
- Buy 3 for $147.99 each and save 1%
- Buy 5 for $145.99 each and save 3%
- Buy 10 for $143.99 each and save 4%
Durable anodized aluminum alloy housing made 930nm infrared laser line generators get featured advantages of good direction, quick response, low production cost. Cooperating with qualified glass coated lens or Powell lens and special glass window in front of beam aperture, direct diode emission 930nm infrared laser modules keep work with high fineness and straight infrared line projection, no light decay under moisture or dust.
Key features:
Import 930nm infrared laser diode 100mW to 500mW with metal heat sink cooling system assures nice thermal emitting, and increasing beam stability.
5V, 9V 1000mA AC/DC adapter connected 930nm infrared laser module makes constant infrared laser beam and infrared line emission, no effect of overheating or over current impact.
Ultra compact 16mm or 26mm diameter metal housing tube allows convenient installation within 3 meters, no barrier line alignment at great distance.
Wide fan angles 10 to 110°glass coated lens or Powell lens makes sure of the best quality infrared laser light source, and high accuracy infrared line with various line lengths.
Adjustable focus optic lens enables high concentration infrared laser light emission and increasing accuracy infrared line alignment.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Laser Line Generators |
| Wavelength (nm) | 930nm |
| Output power (mW) | 100mW, 200mW, 300mW, 400mW, 500mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIB, IV |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 930nm infrared laser line generator and 1 ea AC/DC adapter
Applications: precise infrared line measurement, spectrum analysis, laser communication, laser medical therapy and high tech
Note: For operation of invisible beam 930nm infrared laser line generators, it projects powerful IR laser radiation and reflection. Users should wear correct laser safety goggles and avoid eye exposure to beam aperture so as to assures thermal hurt to eyes and retinas.
