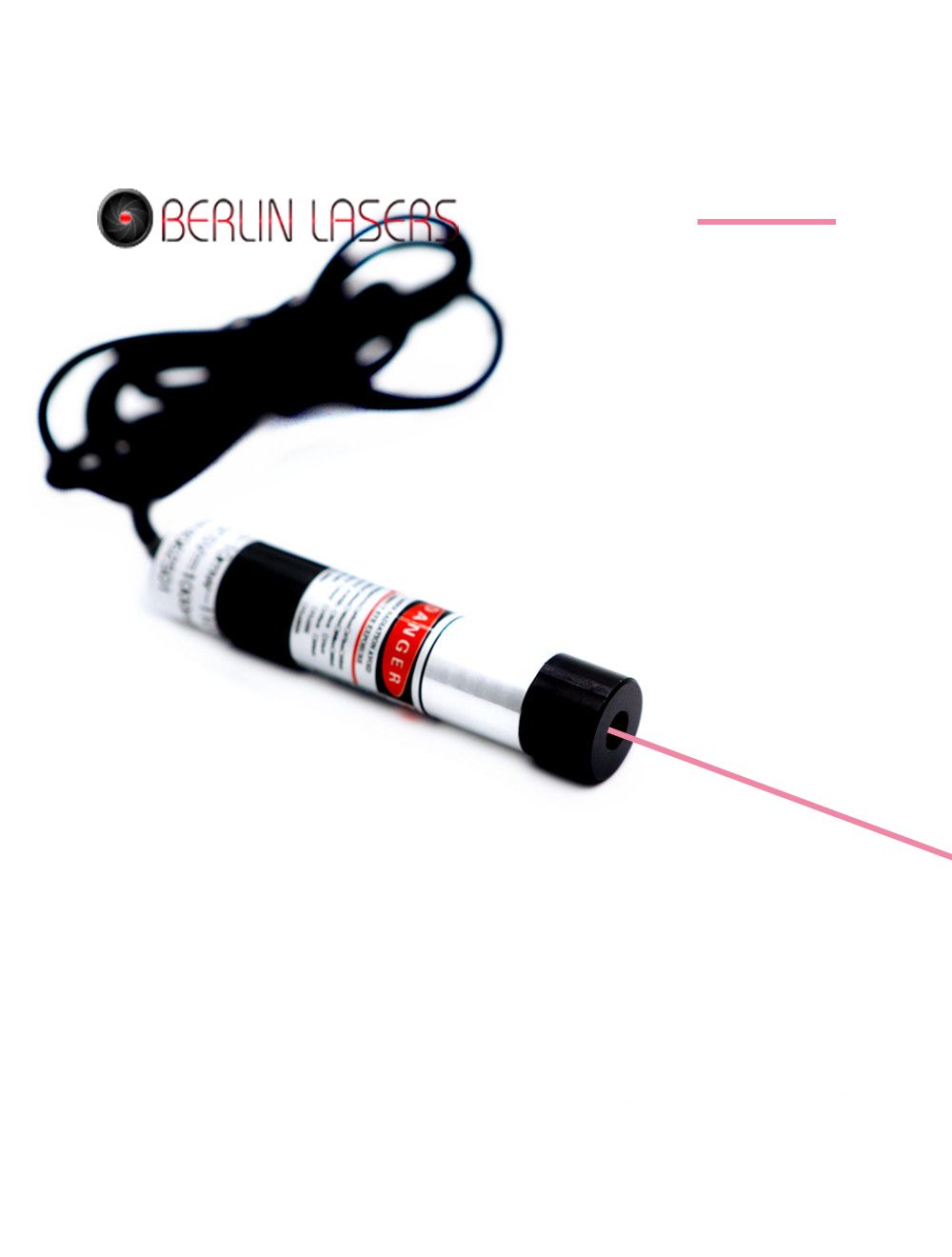

930nm 100mW to 500mW Infrared Line Laser Modules
Invisible infrared laser beam emitting 930nm infrared line laser modules allow easy and convenient use with night version device and external electric power source. Being made with import 930nm infrared laser diode, qualified optic lens and electric driving circuit board, it generates high intensity infrared laser light, and high stability and low production cost infrared line source for all night version fields.
- Buy 3 for $147.99 each and save 1%
- Buy 5 for $145.99 each and save 3%
- Buy 10 for $143.99 each and save 4%
Ultra compact and durable anodized aluminum ally housing made 930nm infrared line laser modules enable convenient installation, quick response and good direction line alignment. Available wide fan angles glass coated lens or Powell lens, after strict beam stability test and special use of glass window, it performs well with high photoelectric ability infrared alesr light emission and high level of accuracy infrared line alignment for labs, institute and scientific research etc.
Key features:
Wide output power of 100mW to 500mW 930nm infrared laser module with metal heat sink cooling system achieves good thermal emitting, and increasing stability infrared line alignment.
5V, 9V 1000mA AC/DC adapter supports continuous infrared laser beam and infrared line emission, freely installed distance of 3 meters, and no decay light precise measurement under overheating or over current impact.
Wide fan angles 10 to 110°glass coated lens or Powell lens assures powerful infrared laser light emission, high linear quality and high fineness infrared line alignment with various line lengths.
Adjustable focus optic lens allows increasing accuracy and fineness infrared line alignment at great distance.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Line Laser Modules |
| Wavelength (nm) | 930nm |
| Output power (mW) | 100mW, 200mW, 300mW, 400mW, 500mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIB, IV |
| Beam thickness at aperture (mm) | 10cm distance:<2.5mm |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 930nm infrared line laser module and 1 ea AC/DC adapter
Applications: precise infrared line measurement, spectrum analysis, laser communication, laser medical therapy and high tech
