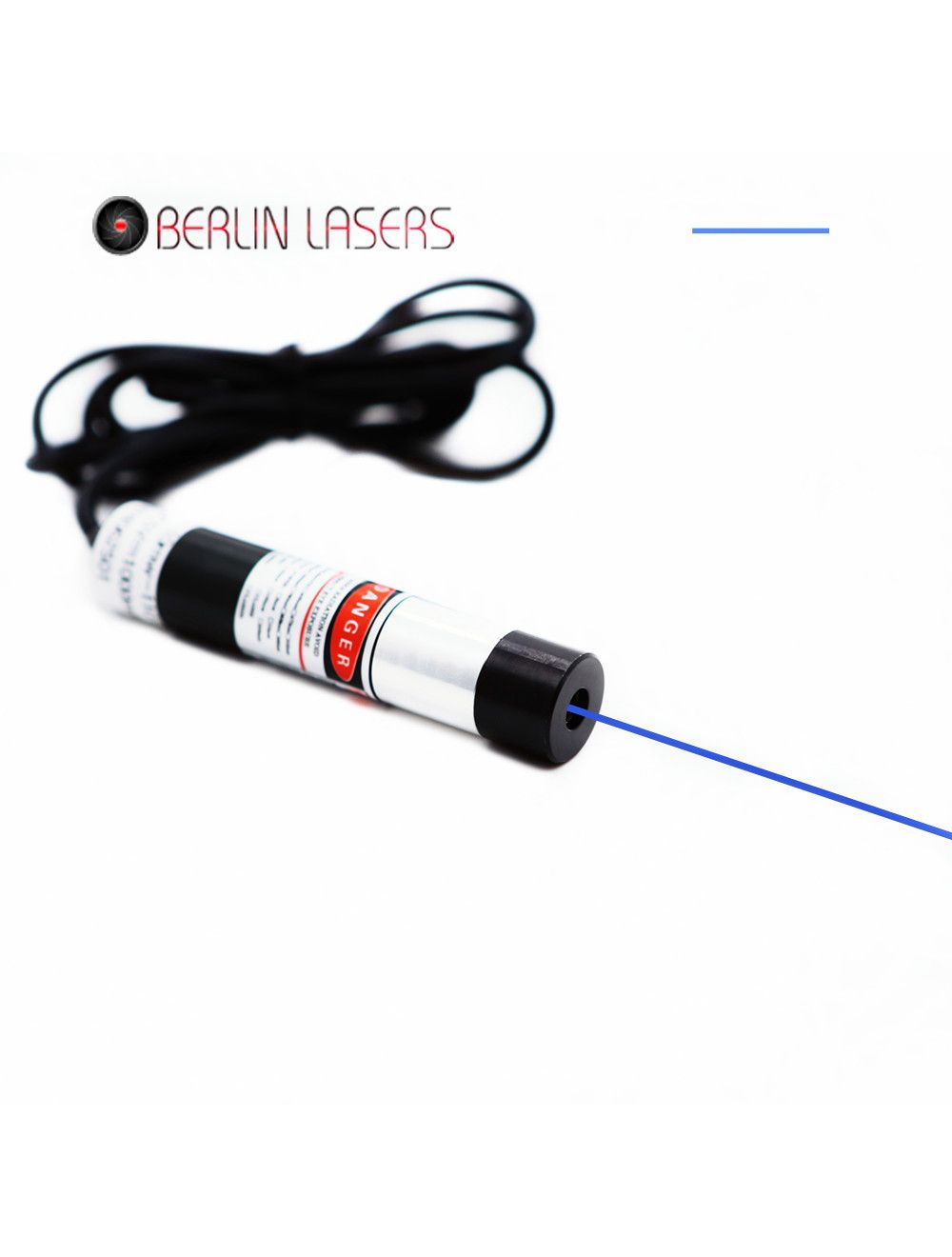

Adjusted Focus 450nm 5mW-100mW Blue Line Laser Modules
Ultra compact designed 450nm blue line laser module applies import 450nm blue laser diodes within 5mW to 100mW, qualified glass coated lens and Powell lens with wide fan angles, projecting highly intense blue laser light source, and highly clear and fine blue line source with various line lengths and finenesses. After easy mounting and adjusting to correct position, industrial stabilized blue laser provides users the best blue line aligning sources for both industrial and high tech line measurement fields.
- Buy 3 for $117.99 each and save 2%
- Buy 5 for $115.99 each and save 3%
- Buy 10 for $113.99 each and save 5%
Industrial stabilized 450nm blue line laser module enables high fineness and good direction blue line alignment at various work distances.
Direction diode emission laser line generator module with metal heat sink cooling system inside durable anodized aluminum alloy housing tube, assuring superior nice thermal emitting, good thermal conductivity, and wide operating temperature stabilization.
5V, 9V 1000mA AC/DC adapter supports 450nm blue laser modules within 5mW to 100mW, providing users highly clear and accurate blue line alignment in multiple occasions. Laser line alignment gets no affect by increasing temperature and serious electric current impact.
Glass coated lens and Powell lens within 10 to 110 degrees fan angles project Gaussian beam or uniform distribution blue laser beam, and generate high linear quality blue line for multiple application fields. No laser light decay or dim within 8 to 10 hours constant use.
Adjustable focus optic lens enables immediate blue laser light concentration, converts into increasing brightness and fineness blue laser line alignment in distance.
APC, ACC driving circuit board supported blue laser line modules gets reduced possibility of tube burning out or damage. Formal blue line measurement achieves up to 85% laser beam stability and long operating lifetime of more than 8,000 hours.
CW and pulsing laser selectable
Technical data:
Item | Blue Line Laser Module |
Wavelength (nm) | 450nm |
Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 50mW, 60°, 93°,110° |
Laser Class | IIIa, IIIB |
Beam thickness at aperture (mm) | <2.5mm; At 2m distance: <2.5mm |
Beam divergence (mrad) | 3.0mrad |
Beam mode (before optics) | TEM |
Focus adjustable? | Yes |
Operating voltage(v) | DC=5V, 9V |
Operating current (mA) | I<1000mA |
Operating temperature(℃) | 10℃~45℃ |
Storage temperature(℃) | -10℃~50℃ |
Dimension | D16mm×L91mm;D26mm×L150mm |
Expected lifetime (hours) | 8000 hours |
Warranty Period | 180 days |
Packing list: 1 ea 450nm 5mW to 100mW blue line laser module and 1 ea AC/DC adapter
Applications: OEM laser applications, laser show, laser displaying, printing system, scientific experiment and high tech
Note: For operation of high power 450nm blue line laser module up to 50mW to 100mW, it generates powerful thermal energy and powerful laser light of beam aperture. It might cause serious thermal hurt to retina and skins. Please avoid eye exposure to beam aperture and wear laser safety goggles so as to achieve free and safe blue line alignment constantly.
