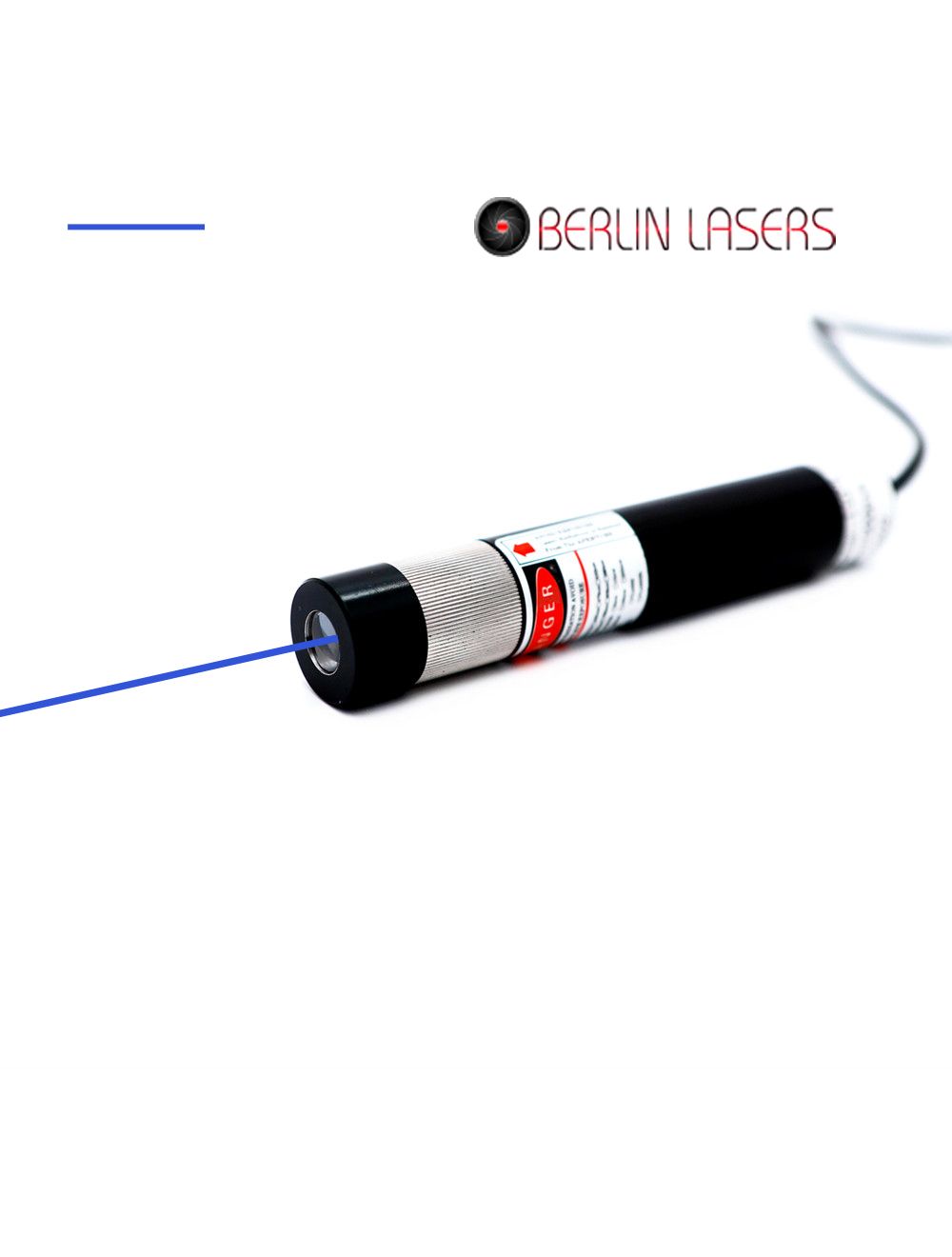

Glass Coated Lens and Powell Lens 5mW to 100mW 450nm Blue Laser Line Generators
Industrial stabilized 450nm 5mW to 100mW blue laser line generators make the best use of qualified glass coated lens and Powell lens within 10 to 110 degree fan angles, generating high fineness and high linear quality blue line for both industrial and high tech line measurements. Professional designed adjustable focus lens enables high quality blue laser light source emission, and increasing accuracy and fineness blue line alignment for multiple application fields.
- Buy 3 for $117.99 each and save 2%
- Buy 5 for $115.99 each and save 3%
- Buy 10 for $113.99 each and save 5%
Employed by import 450nm blue laser diode, APC, ACC driving circuit board and cooling system, direct diode emission made 450nm blue laser line generators makes sure of high stability blue laser beam emission from beam aperture. Cooperating with qualified optic lens with wide fan angles and constant electric power source, 450nm blue laser module assures high level of accuracy and low production cost line aligning measurement for all precise devices manufacturing works effectively.
Key features:
450nm blue line laser modules within 5mW to 100mW assure highly visible blue laser beam emission, and highly clear blue line alignment measurement within wide range distances and formal lighting occasions.
5V, 9V AC/DC adapter supports blue laser with continuous blue laser light source emission. It enables maximum installed distance of 3 meters and no barrier line indication onto various working surfaces.
Qualified glass coated lens and Powell lens within 10 to 110 degree fan angles provide users various line lengths and finenesses. Glass window in front of beam aperture makes perfect laser module tube protection from moisture or dust as well.
Ultra compact anodized aluminum alloy housing tube with 16mm and 26mm tube diameter enables convenient installation, and quick response blue laser line alignment.
Easy screw of adjustable focus optic lens allows freely adjusted blue line fineness, assures increasing accuracy line alignment for long lasting and long distance use.
Technical data:
| Item | Blue Line Laser Line Generators |
| Wavelength (nm) | 450nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 50mW, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.5mm; At 2m distance: <2.5mm |
| Beam divergence (mrad) | 3.0mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 450nm 5mW to 100mW blue laser line generator and 1 ea AC/DC adapter
Applications: optical experiment, laser show, laser displaying, laser communication, industrial precise line alignment, scientific research etc
Note: The operation of high power 450nm blue laser line generator up to 50mW to 100mW projects powerful blue laser light and thermal energy from beam aperture. Please avoid eye exposure to beam aperture and wear correct laser safety goggles so as to achieve safe and free blue line alignment constantly.
