TTL Modulation Focusable 650nm Red Line Laser Module

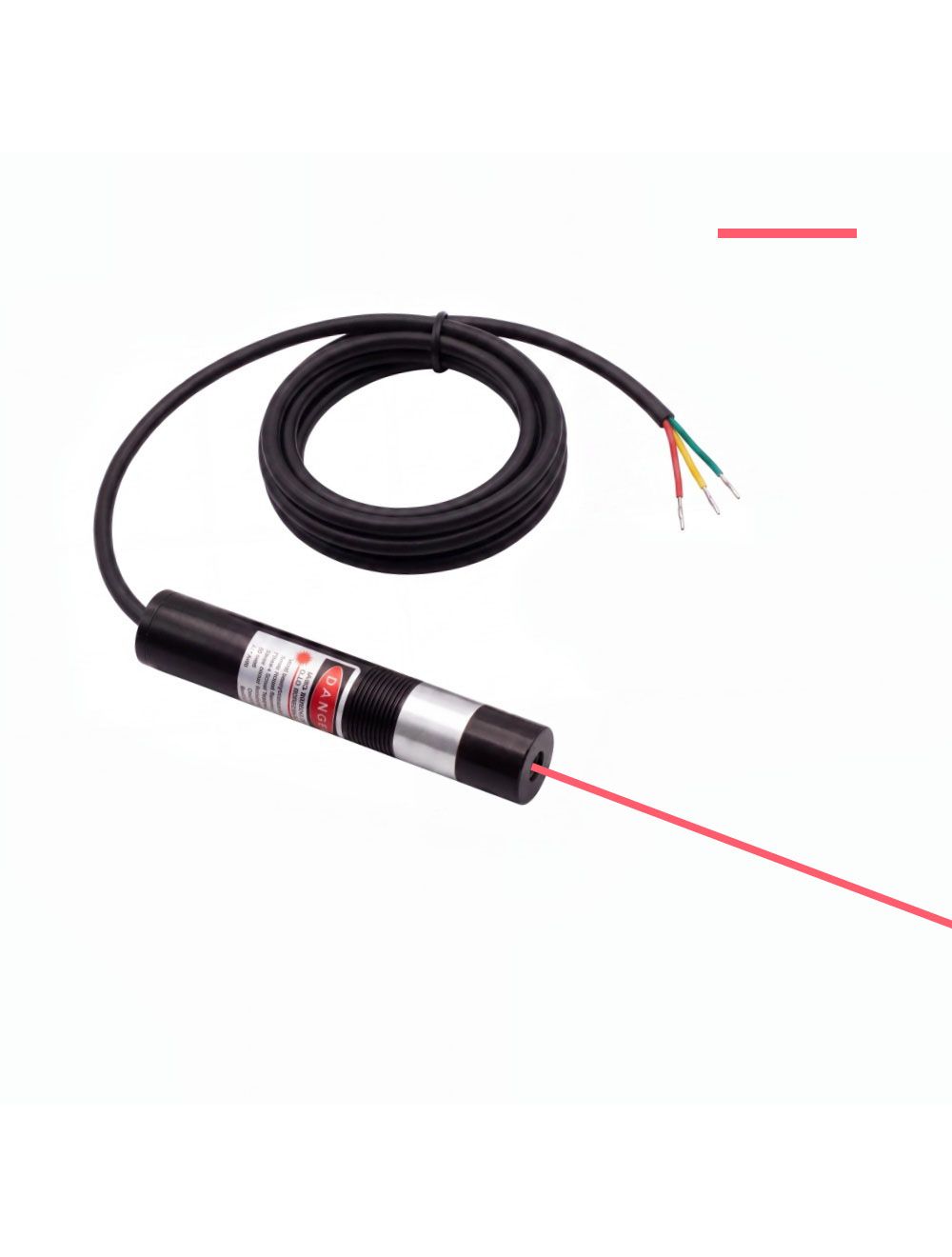

TTL modulation focusable 650nm red line laser module features an adjustable lens to adjust the laser line thickness. The TTL signal enables high speed laser on/off switch, making it compatible with different control systems. It projects fine, sharp and straight red reference line, widely used in industrial precise line alignment and measurement, machine vision scribing.
- Buy 2 for $77.99 each and save 3%
- Buy 5 for $75.99 each and save 5%
- Buy 10 for $73.99 each and save 8%
TTL modulation focusable 650nm red line laser module features stable point light source, it converts the intense red light into a fine and straight red reference line using a high precision cylindrical mirror. Featured by TTL high speed modulation and adjustable focus lens, it can produce freely adjusted thickness red reference line for various work distances. Integrated with industrial device, it enables precise line indication for industrial cutting, positioning and alignment fields.
Key features:
◆ 650nm wavelength semiconductor laser diode and glass coated lens produce straight and fine red lines with sharp edges and no obvious break or dark areas.
◆ Adjustable focus lens allows free control of line width and projection length, suitable for various distances line projection.
◆ Built-in APC, ACC driving circuit board and metal heat sink cooling system enable constant red line projection, fast heat dissipation, no effect by temperature or electric current impact.
◆ Industrial grade anodized aluminum alloy housing tube features shockproof, anti-static, suitable for dusty and vibration occasions.
◆ TTL high speed modulation supports on/off switching control, making it compatible with microcontrollers and FPGA control systems.
Technical Data:
| Item | TTL Modulation Red Line Laser Module |
| Wavelength(nm) | 650nm |
| Output power(mW) | 5mW-100mW |
| Laser Class | IIIa, IIIb |
| Available Fan Angle (degree) | 10°, 20°, 30°, 50°, 110° |
| Beam diameter at aperture(mm) | <2.0mm; 2m diameter: <2.0mm |
| Beam divergence(mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | Dia16mm×Length71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | ≥8000 hours |
| Warranty | 6 months |
Applications:
◆ Pre-cutting red lines on woodworking saws, stone cutting, metal shears, cutting beds
◆ Industrial Automation Alignment: Centering SMT placement machine tracks, centering materials on production lines
◆ Machine Vision and Inspection: Synchronized strobe with industrial cameras for edge detection, defect scanning
◆ 3D Printing and Engraving Machine: Printing platform leveling, engraving range preview
◆ Medical and Scientific Research: Physiotherapy positioning lines, optical experiment optical path calibration, teaching
Note: Do not look directly at or shine it onto the eyes or skins. Users should wear correct 650nm wavelength preventing laser safety goggles during the use of red line laser up to 50mW.
Attention: For high powered or OEM TTL modulated 650nm red line lasers, please contact us free at support@berlinlasers.com.
